Oversized Clamp-On Breaker Lockouts

The base seat is made of P A66 +20 %G F,D11/D12/D 1 3 lock body is made of modified PP,D11X/D12X/D13x lock body is made of PA+ABS.

A wide range of applications, suitable for a variety of medium - sized built-in tripping plastic case circuit breakers.

Use thumbscrew to clamp lockout securely onto switch tongue, then pull cover and lock in place to prevent clamp from being loosened.

New blade design provides tighter grip with less torque on thumb screw.- Detachable cleats expand the range of application breakers.

The lockouts can take padlocks with a shackle Dia.up to 7mm.· The base can clamp the bottom of the lock body very easily.

Long sliding splint ensures locking of the circuit breaker.

Compared with the old models,the new one is not easy to be broken.

DETAIL DISPLAY

Product Selection

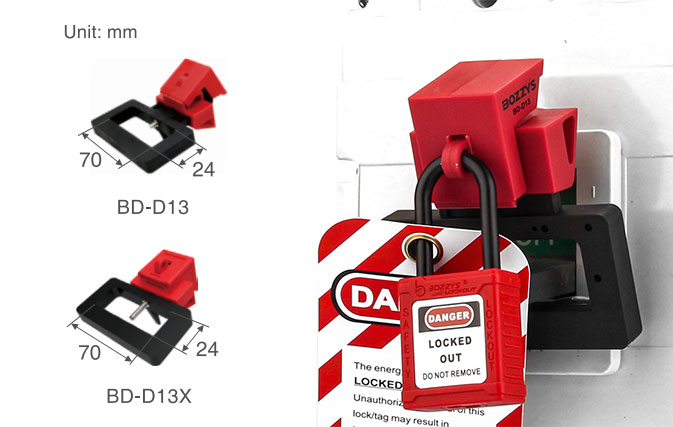

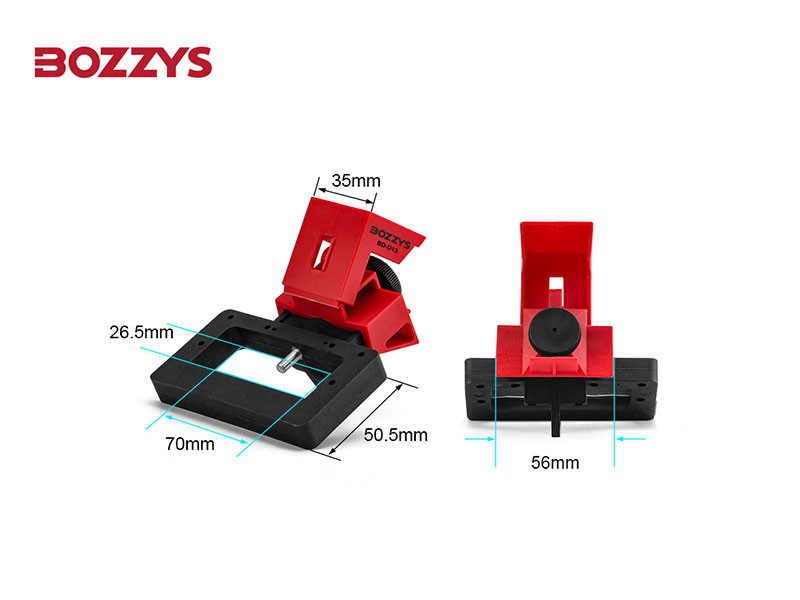

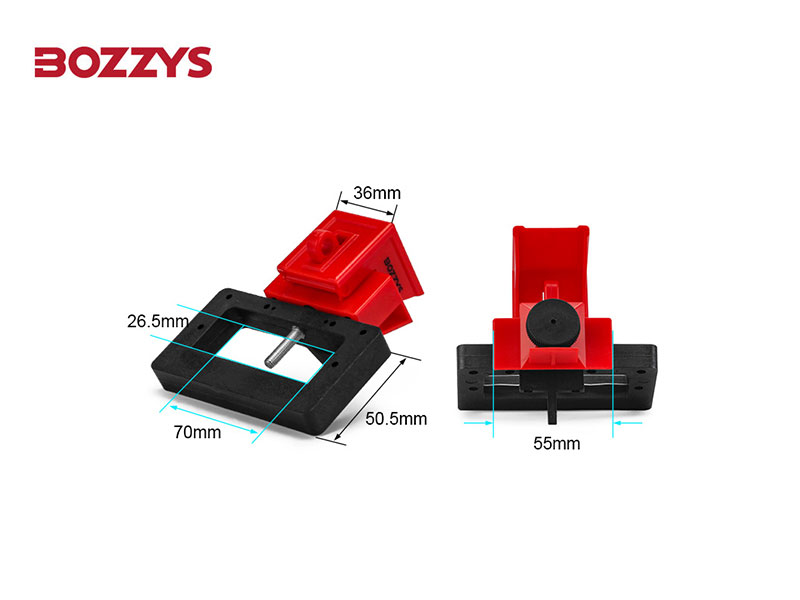

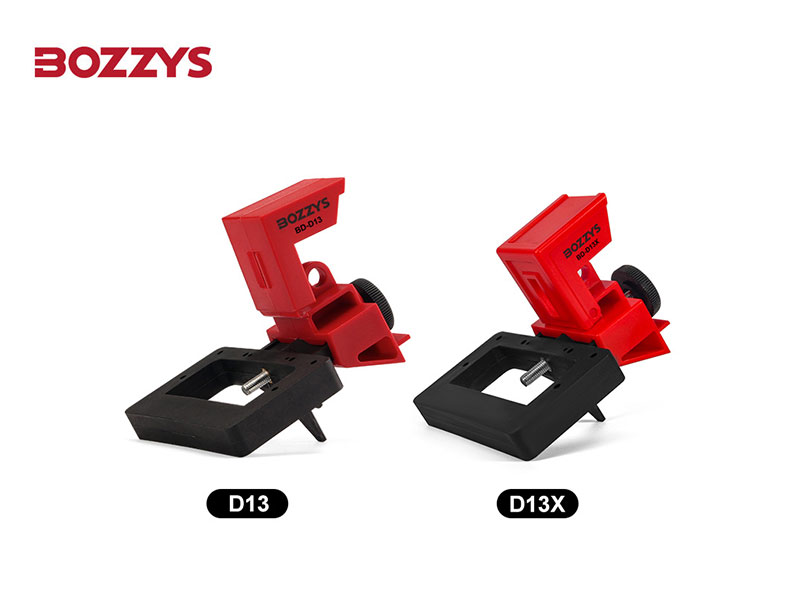

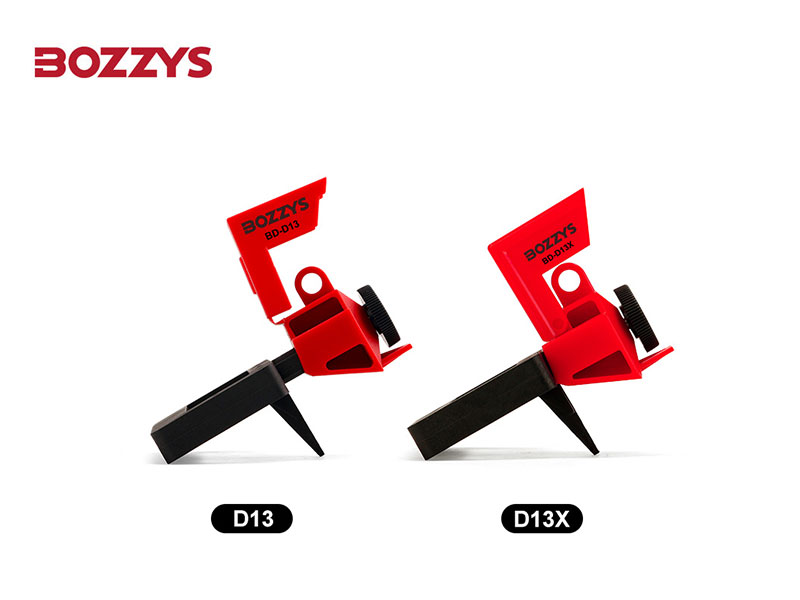

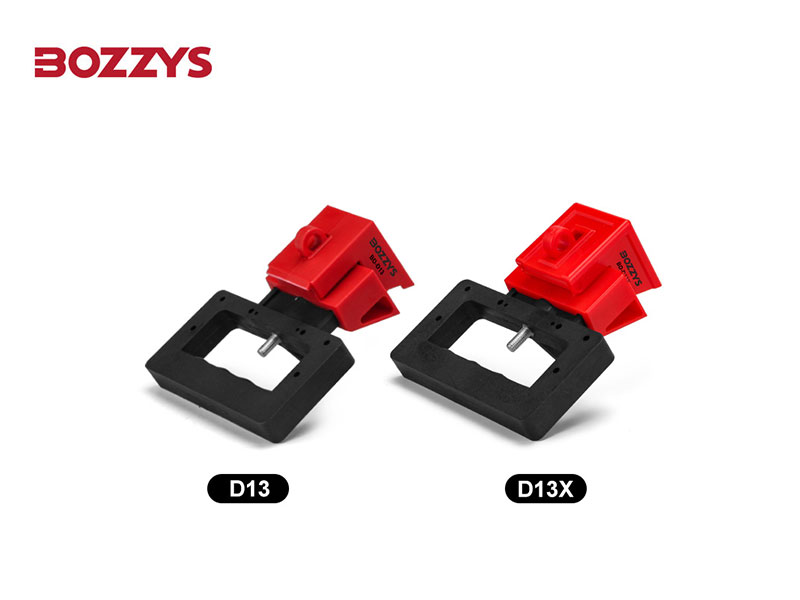

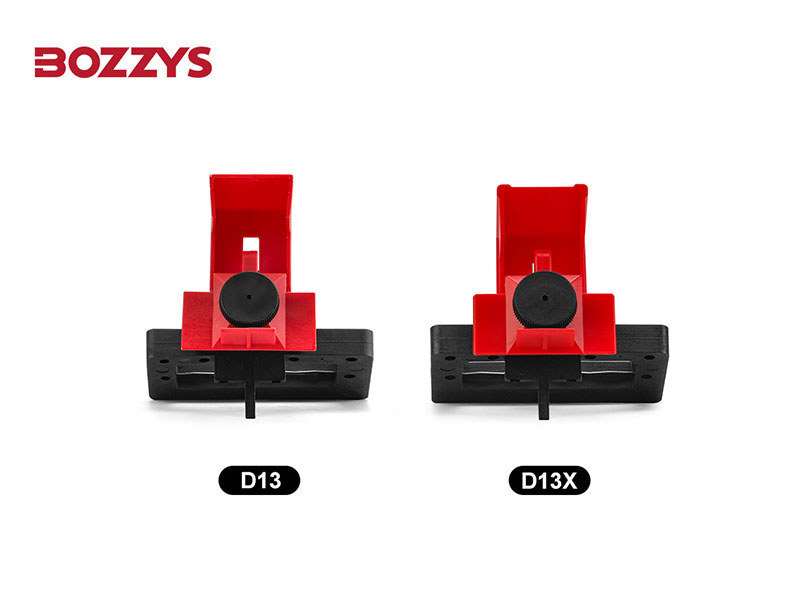

Model: BD-D13/13X

Description: Maximum locking range, handle width 68mm, thickness 22mm

a.Made from rugged polypropylene PP and impact modified PA.
b.Use thumbscrew to clamp lockout securely onto switch tongue, then pull cover and lock in place to prevent clamp from being loosened.
c.New blade design provides tighter grip with less torque on thumb screw.
d.Detachable cleats expand the range of applicable breakers.
e.The lockouts can take padlocks with a shackle diameter up to 7mm.

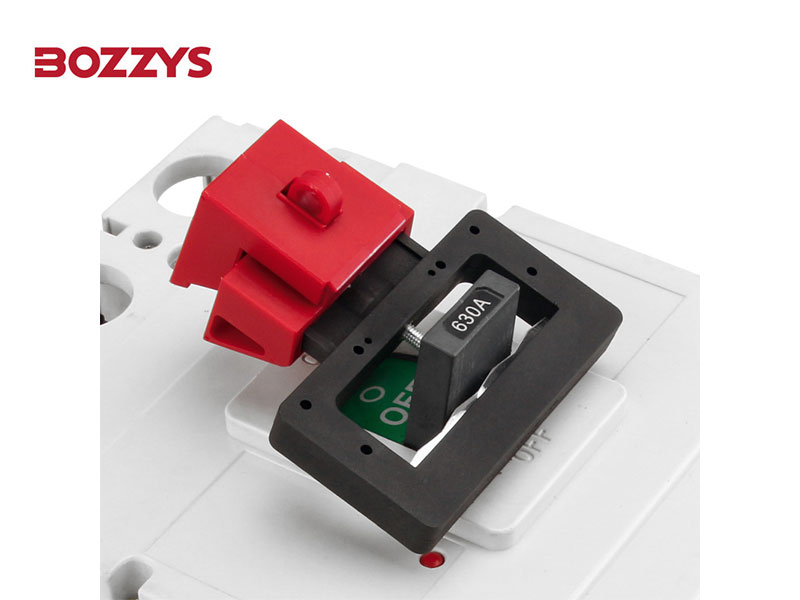

Oversized Clamp-On Breaker Lockout is to complete the locking of the handle of the circuit breaker equipment by means of screw tightening, realize the safety management of locking and tagging, and prevent accidental activation.

This oversized 480/600V frame lockout fits breaker switches up to 2-1/4 in. wide and 7/8 in. thick and applies in seconds with thumbscrew mechanism, no screwdriver needed.

Oversized Clamp-On Breaker Lockouts are made of durable polypropylene and glass-filled impact-modified nylon

This lockout device isolates and secures circuit breaker switches to protect employees against electrical accidents during equipment maintenance

Part Code	Description
BD-D11/D11X	Can lock handle width ≤18mm
BD-D12/D12X	Can lock handle width ≤42mm
BD-D13/D13X	Can lock handle width ≤72mm
