BD-D11/11X

Single-pole circuit breaker lockouts

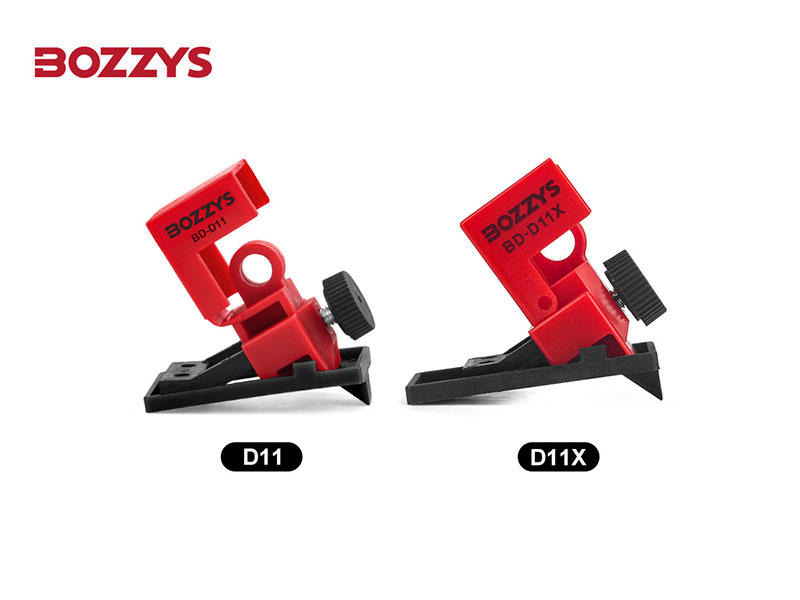

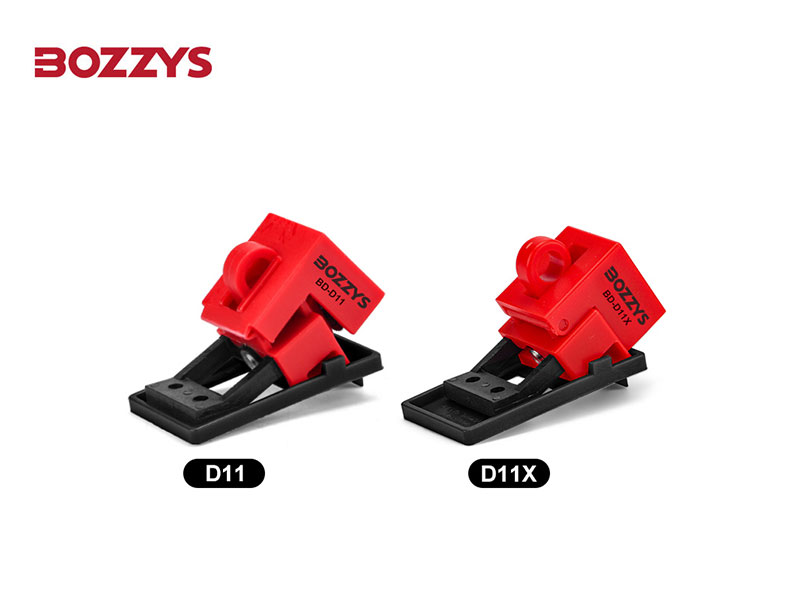

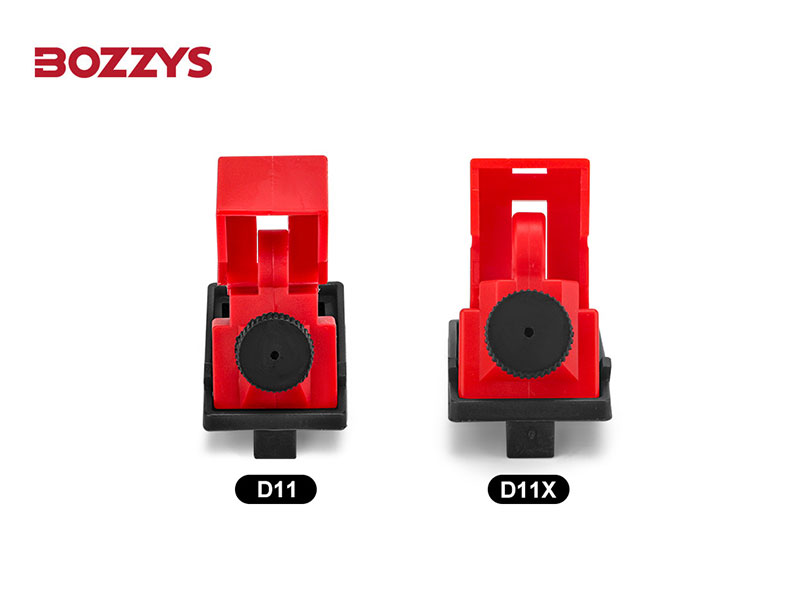

The base seat is made of P A66 +20 %G F,D11/D12/D 1 3 lock body is made of modified PP,D11X/D12X/D13x lock body is made of PA+ABS.

A wide range of applications, suitable for a variety of medium - sized built-in tripping plastic case circuit breakers.

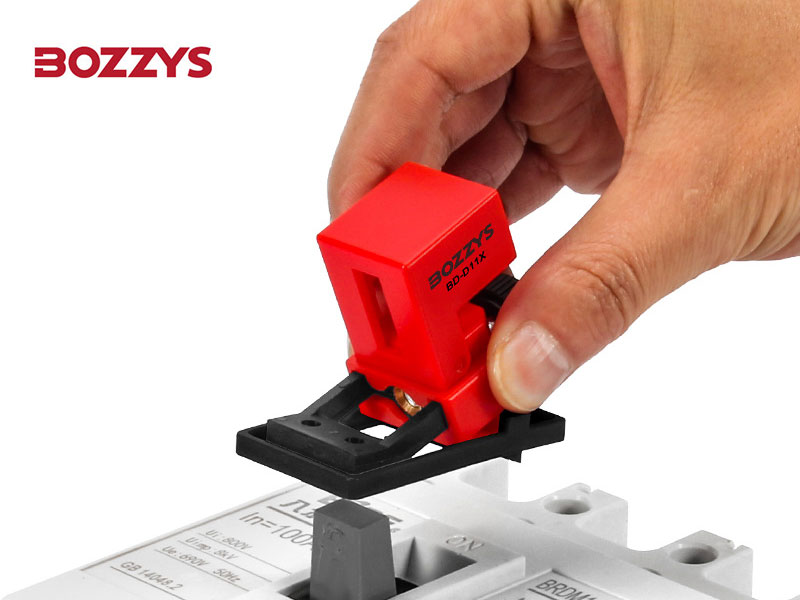

Use thumbscrew to clamp lockout securely onto switch tongue, then pull cover and lock in place to prevent clamp from being loosened.

New blade design provides tighter grip with less torque on thumb screw.- Detachable cleats expand the range of application breakers.

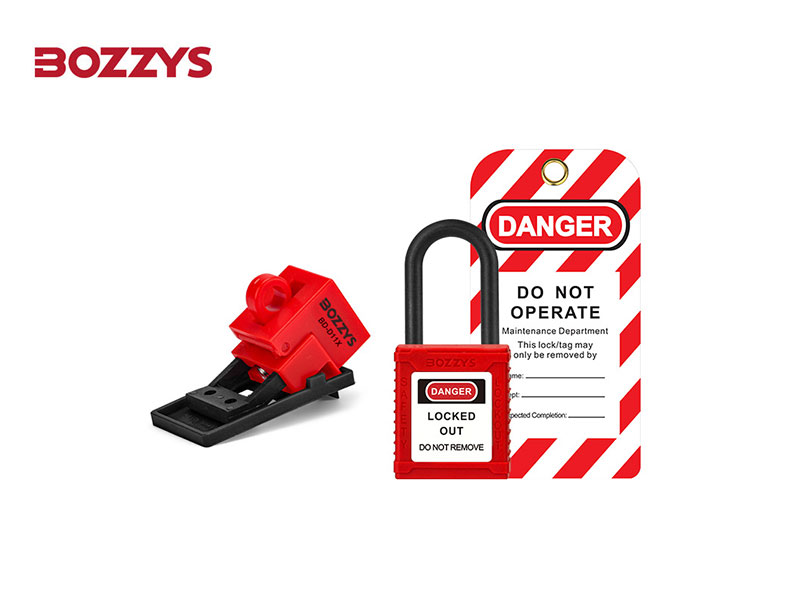

The lockouts can take padlocks with a shackle Dia.up to 7mm.· The base can clamp the bottom of the lock body very easily.

Long sliding splint ensures locking of the circuit breaker.

Compared with the old models,the new one is not easy to be broken.

Get A Quote PDF Datasheet
DETAIL DISPLAY

Product Selection

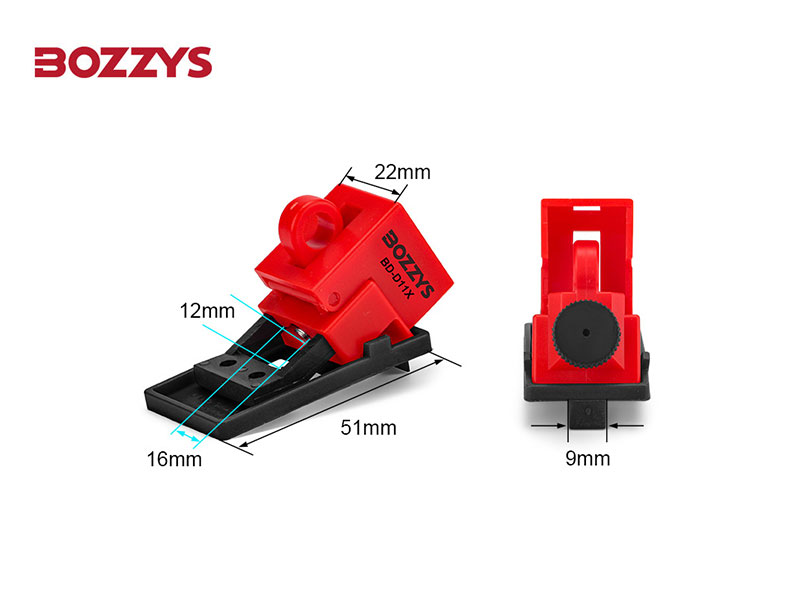

Model: BD-D11/11X

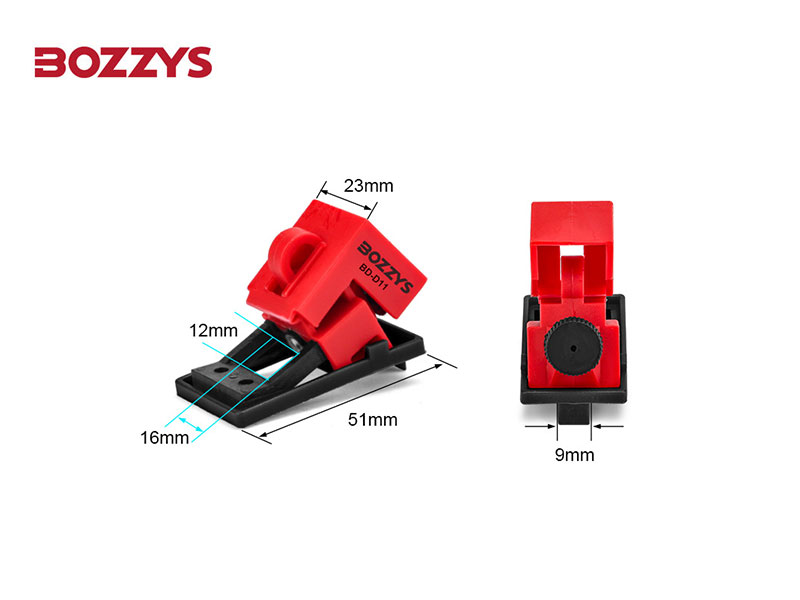

Description: Maximum locking range, handle width 16mm, thickness 10mm

a.Made from rugged polypropylene PP and impact modified PA.
b.Use thumbscrew to clamp lockout securely onto switch tongue, then pull cover and lock in place to prevent clamp from being loosened.
c.New blade design provides tighter grip with less torque on thumb screw.

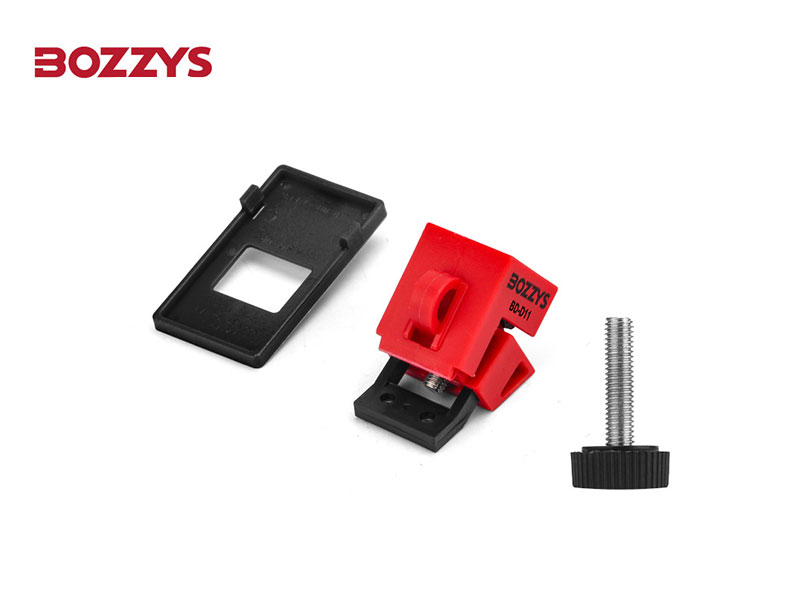

d.Detachable cleats expand the range of applicable breakers.

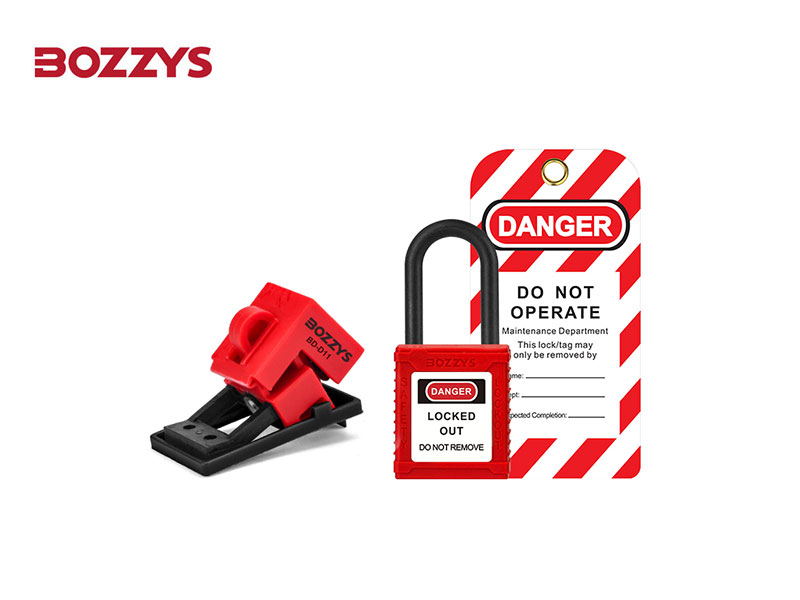

e.The lockouts can take padlocks with a shackle diameter up to 7mm.

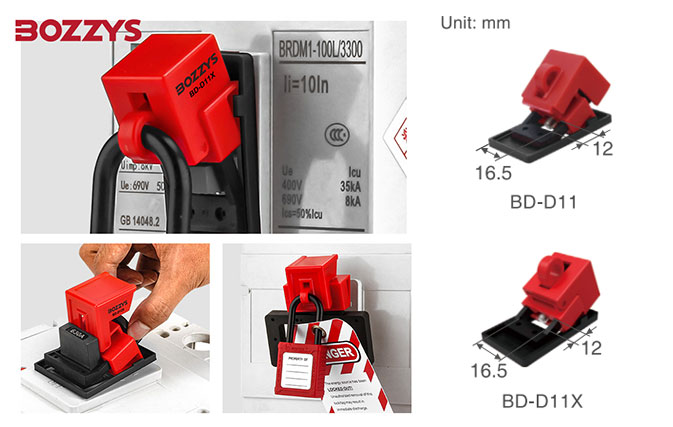

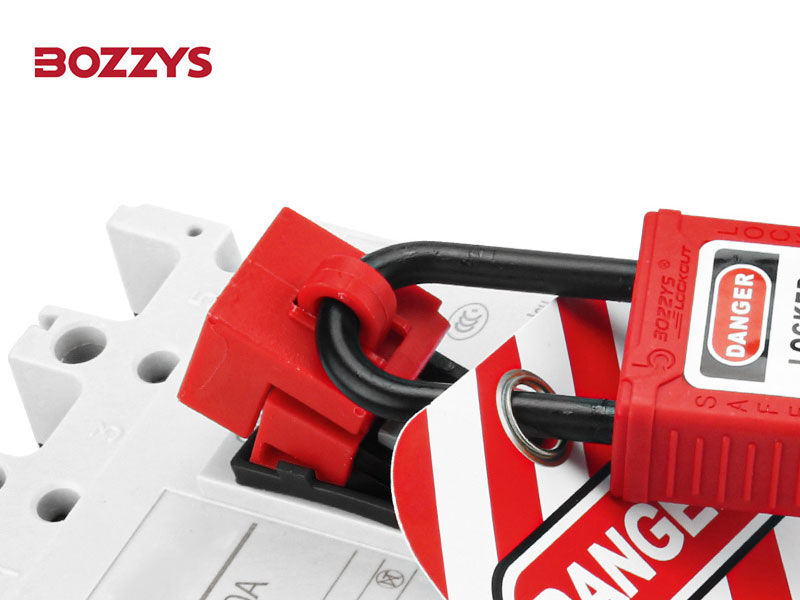

The Single-pole circuit breaker lockouts is to complete the locking of the handle of the circuit breaker equipment by means of screw tightening, realize the safety management of locking and tagging, and prevent accidental activation.

Part Code Description
BD-D11 Can lock handle width ≤18mm
BD-D12 Can lock handle width ≤42mm
BD-D13 Can lock handle width ≤72mm
