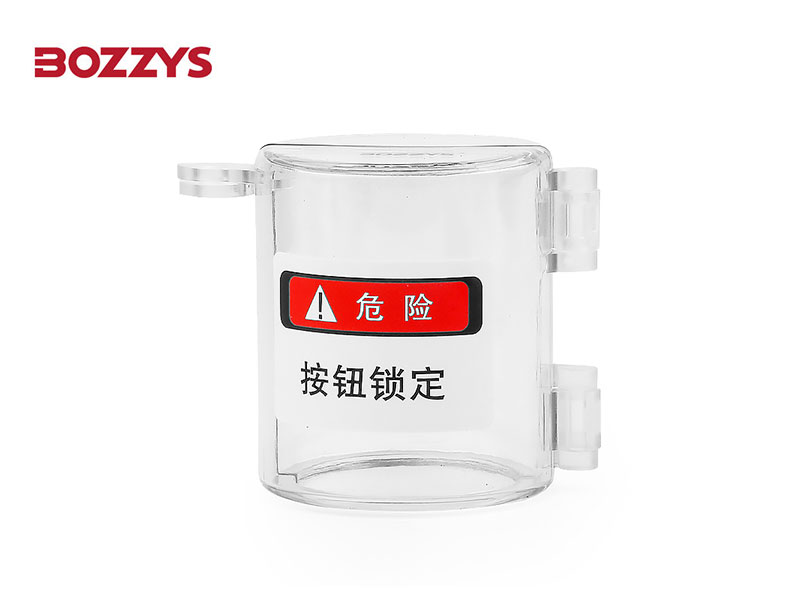

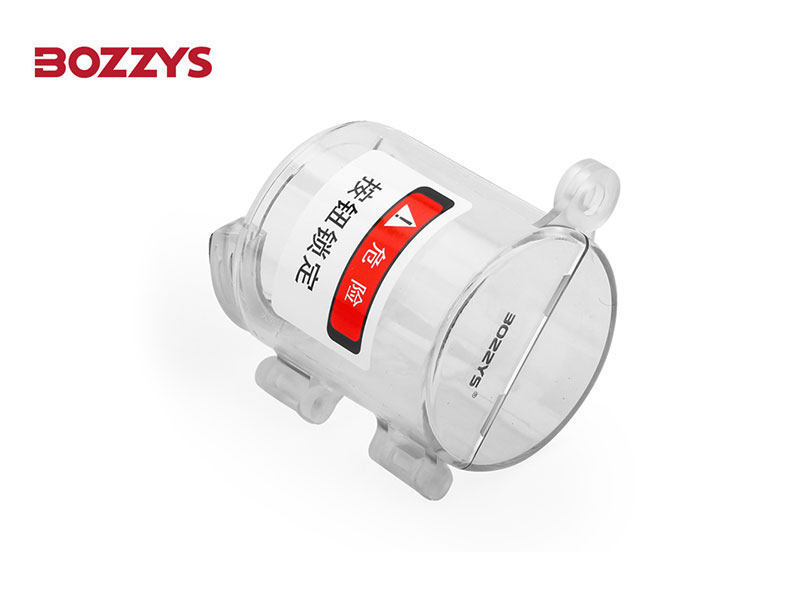

Button and Rotary Switch Cover

Made from high-strengthened transparent glass resin PC.

Avoid dismantling, easy to install, install the base on the bottom of the emergency stop switch, can lock and remove at random.

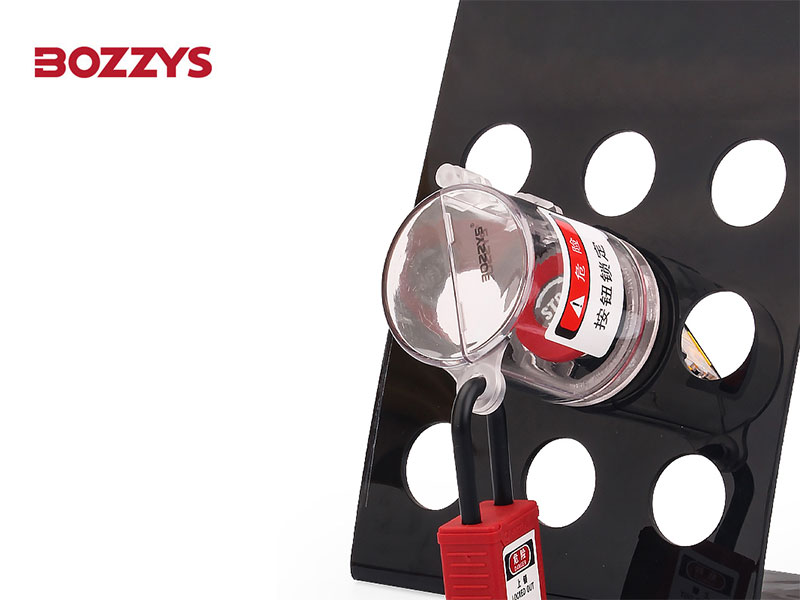

lnstall on the push or spiral release emergency stop button, avoid accidentally touch.

When no need to lock at ordinary time, leave the base at site,will not affect the operation at all. Put the cover to lock the base when necessary.

DETAIL DISPLAY

Removable Button and Rotary Switch Cover Kit, Prohibiting Access to Switches or Controls

Fits pushbutton switches 30.5mm and 22.5mm diameter

Transparent base and cover allow nameplates and labels to be seen

Horseshoe-shaped retrofit mounts allow for use with raised nameplates and off-center mounts to accommodate rotary switch knobs.

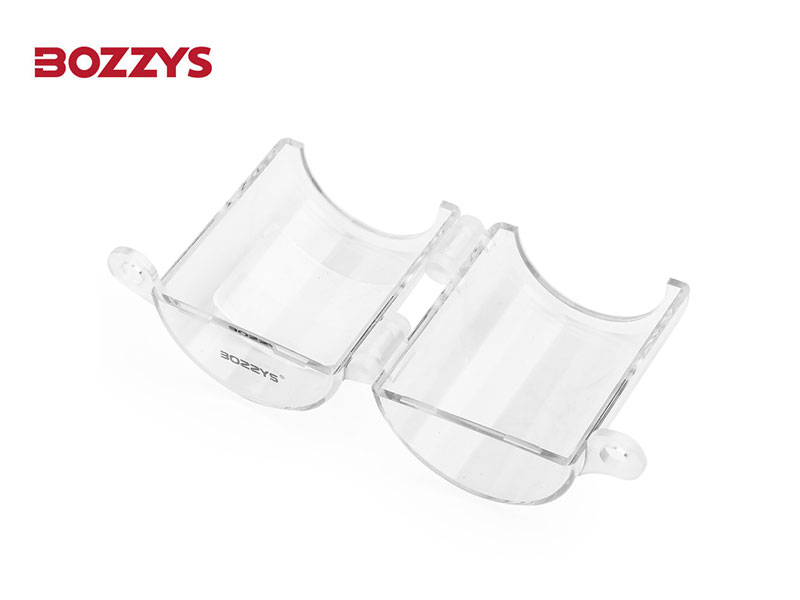

The split cover can visually manage the switch buttons, and the status of the buttons can be clearly seen.

Accommodates buttons up to 53mm in diameter and 63mm in height

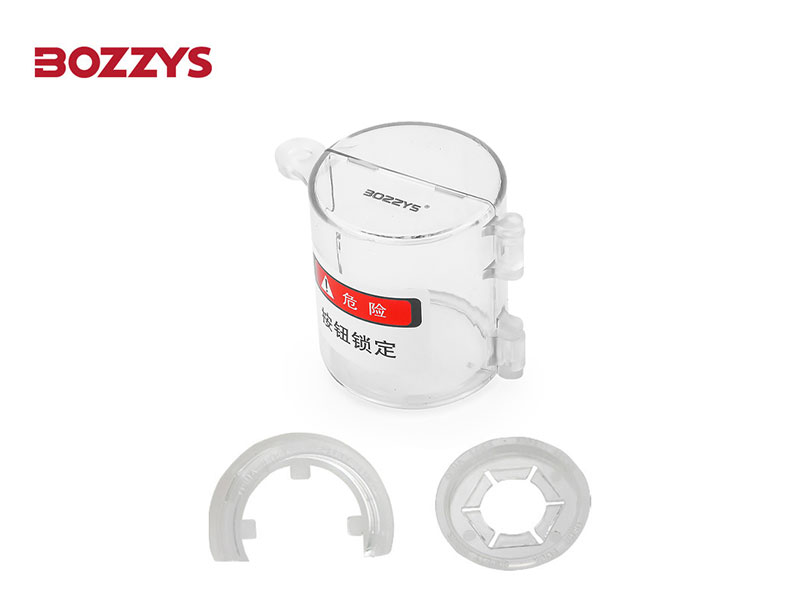

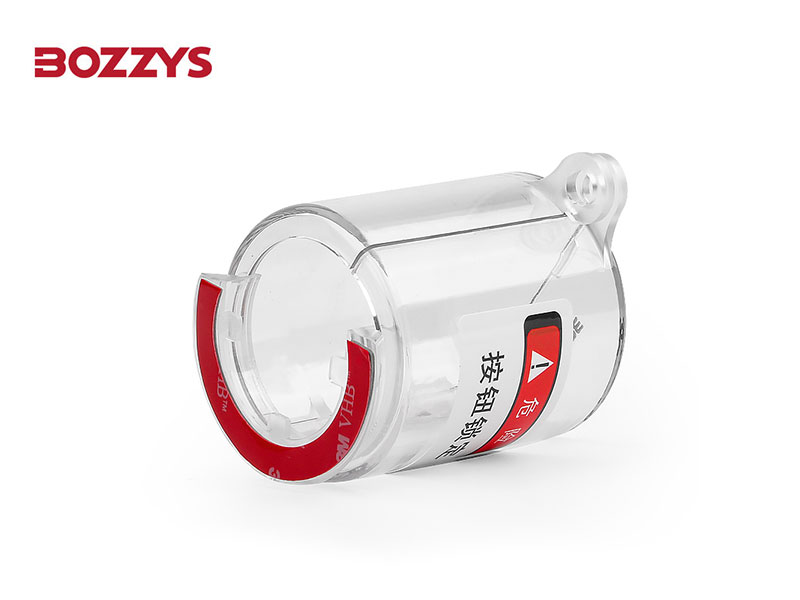

Includes a cover, a new mounting base, and a retrofit base with double-sided tape

If the size specification cannot meet your locking needs, please contact us and we can customize a new locking solution for you.

Accepts all bozzys safety padlock shackles and locking hasp diameters

Laser engrave your logo on the included stainless steel plate

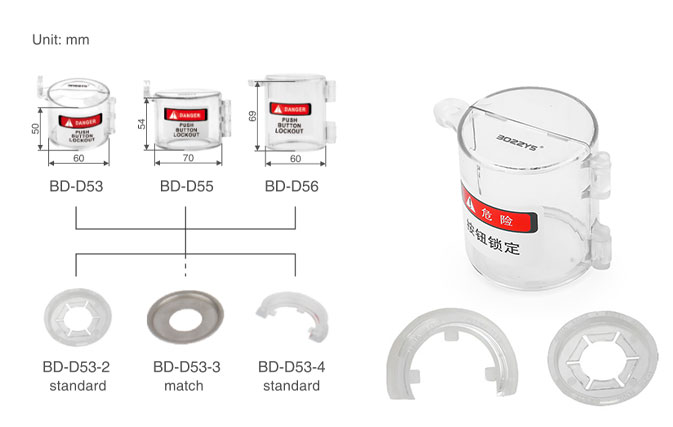

Model	Description
BD-D56	lnner Dia.54.5mm x inner height 64mm, hole Dia. 45.5mm
BD-D53-2	Suitable for inner Dia. 22/30mm hole button base
BD-D53-3	Suitable for inner Dia.22mm open hole stainless steel base
BD-D53-4	Suitable for inner Dia.30/38mm hole button base
