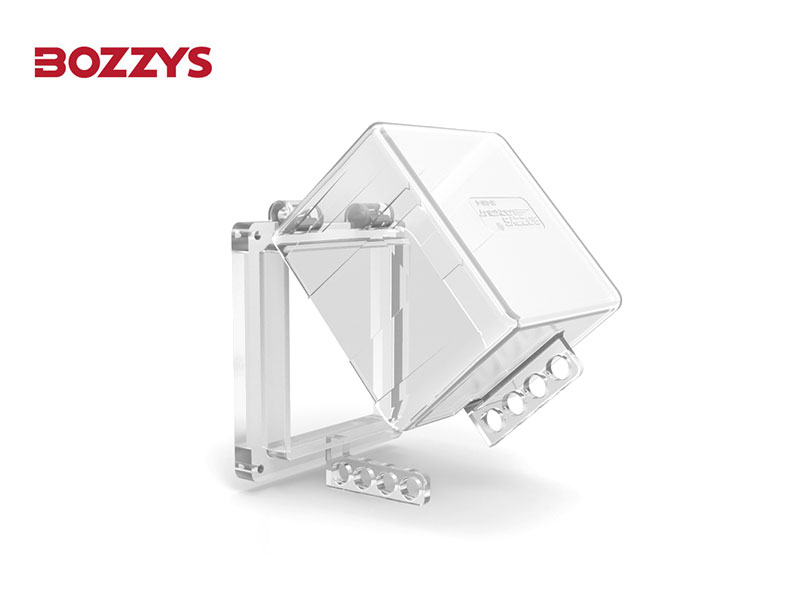

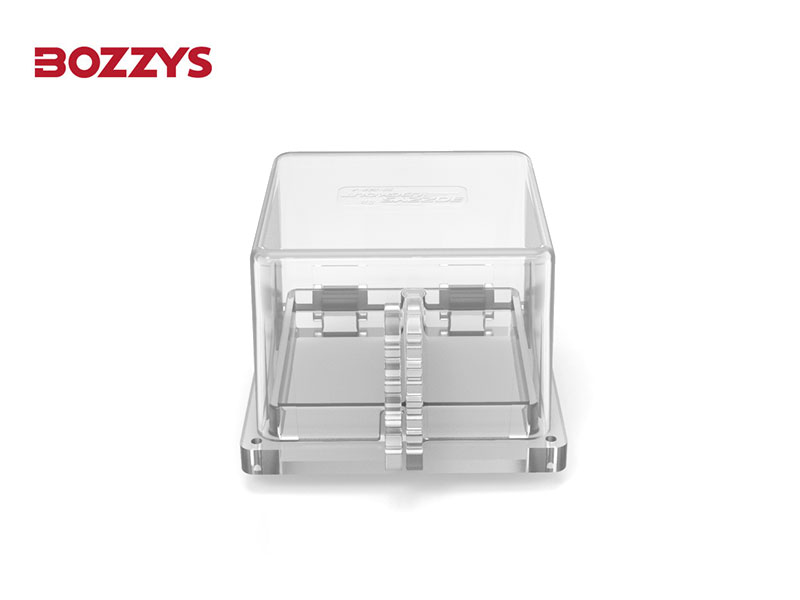

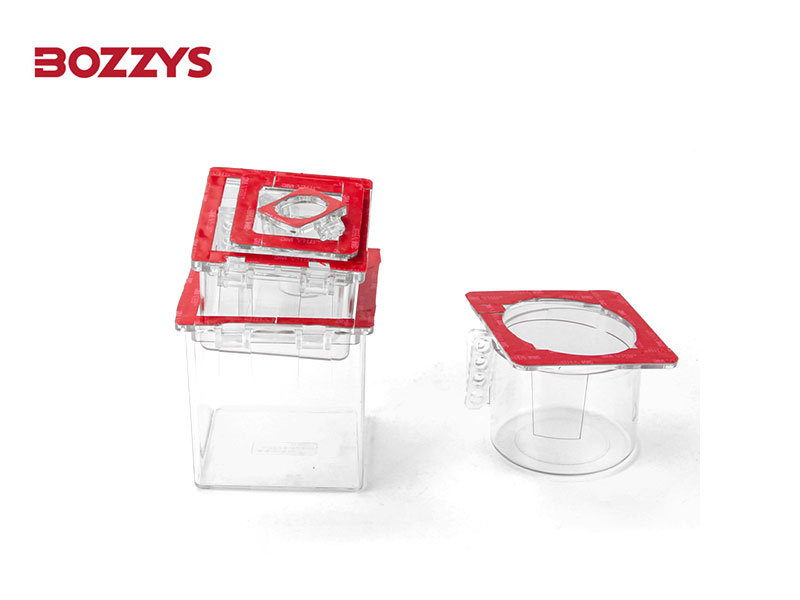

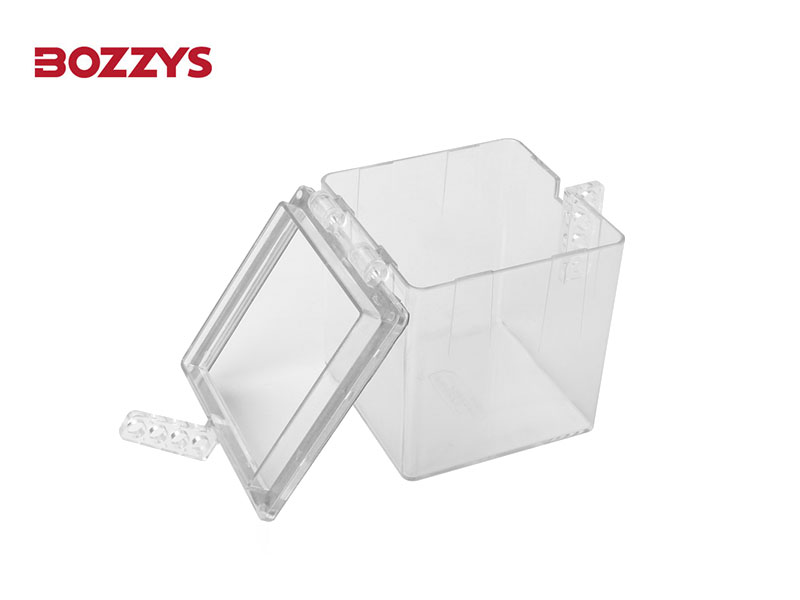

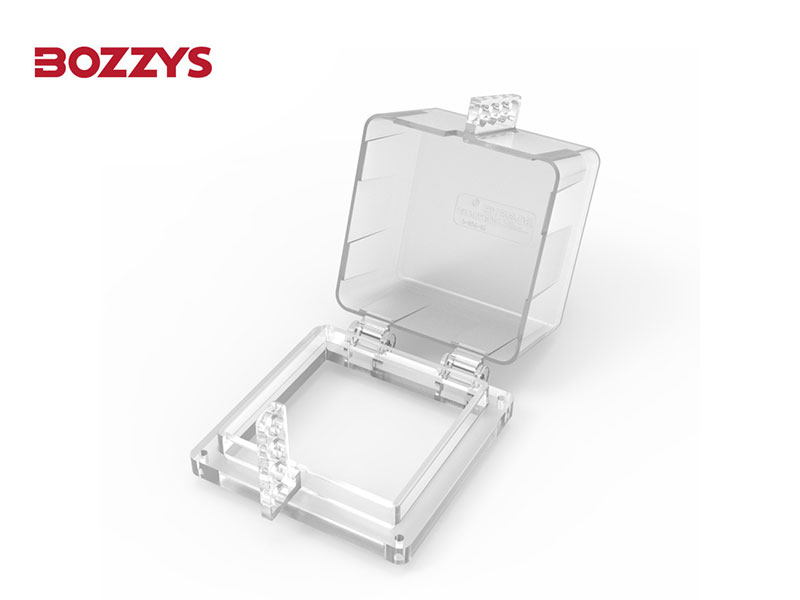

Push Button lockout cover

Transparent high-strengthened glass resin PC material.

No need disassemble, easy to install, just install the base on the bottom of the emergency stopswitch. it can be locked and removed at will.

Permanently installed on the emergency stop button which can push-pull or screw release toprevent accidental touch.

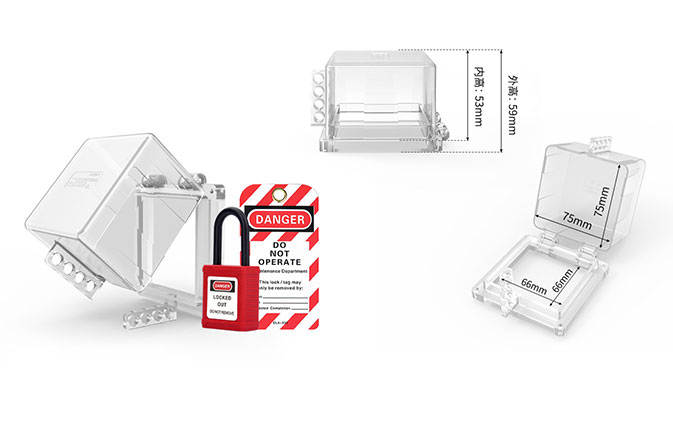

According to the reserved holes of the lock, it can be locked with 2-4 safety padlocks with the Dia. of the lock beam ≤ 7mm can be locked

DETAIL DISPLAY

Product Selection

Model: BD-D60-4

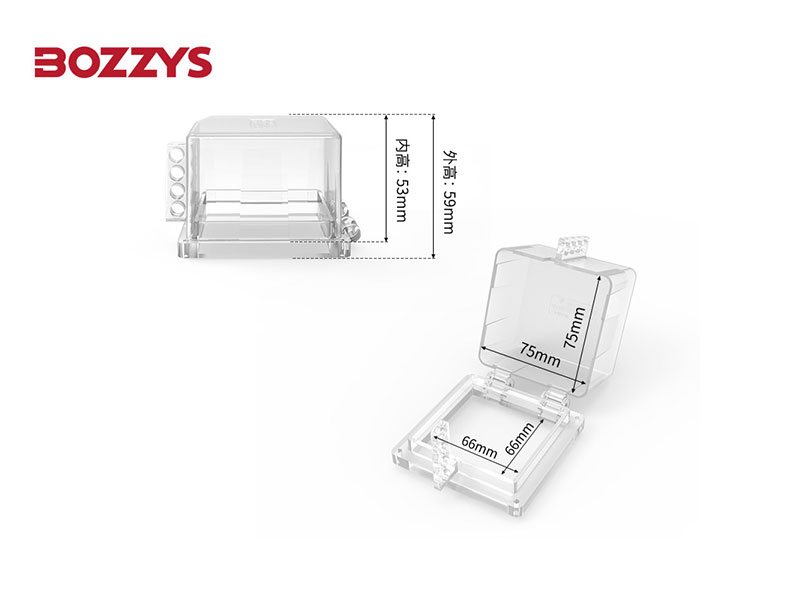

Dimensions inside the base: 70×70mm

lnner height of the base: 60mm

Highly transparent Push Button Safety Cover
Push-button safety covers prevent unauthorized use of push/pull and twist-release emergency equipment.

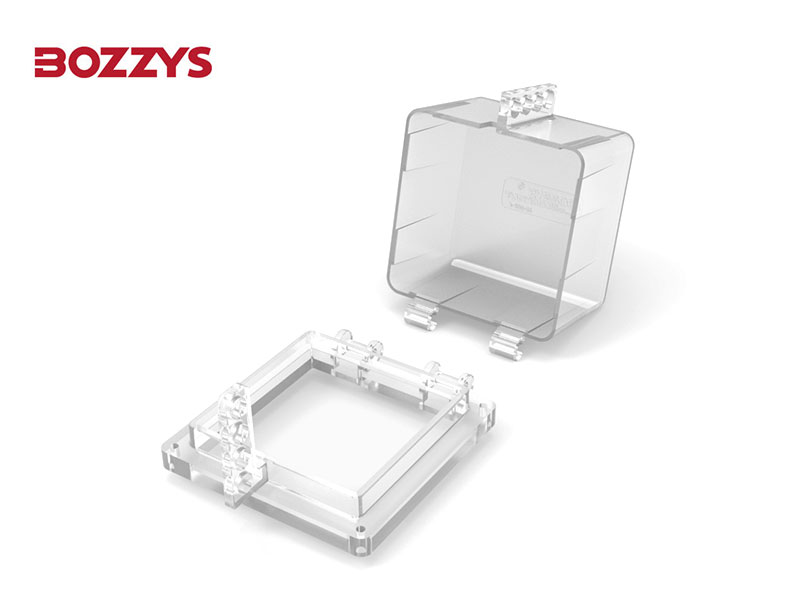

The detachable design and installation are very simple. You only need to install the base on the bottom of the switch button, and then fasten the cover to lock it, which can effectively prevent accidental touch, and can be removed and installed according to management needs.
The Button and Rotary Switch Cover is captured by a rotary or push-button switch bezel and has a clear base and lid that allows visibility of the nameplate and labels.
The Button and Rotary Switch Cover is suitable for locking switches with a diameter of less than 70MM.
If the size specification cannot meet your locking needs, please contact us and we can customize a new locking solution for you.
Accepts all bozzys safety padlock shackles and locking hasp diameters
Laser engrave your logo on the included stainless steel plate
