BD-D02

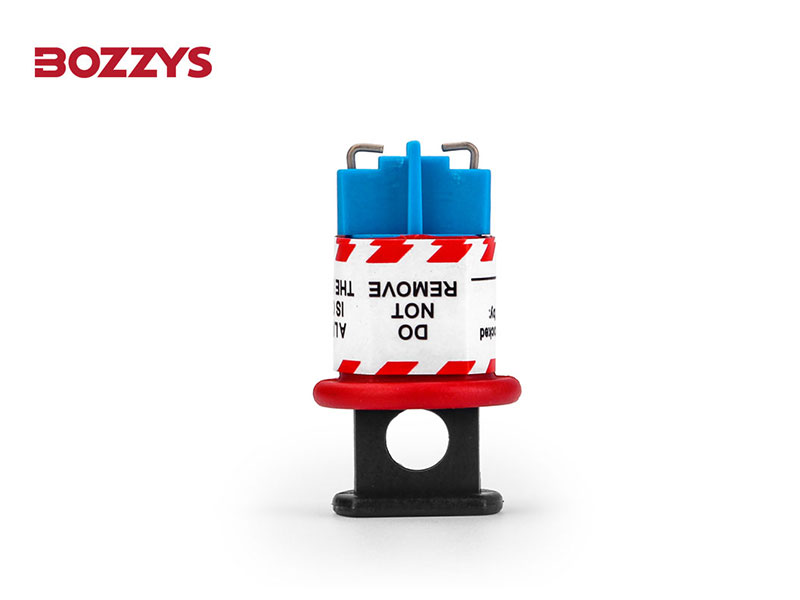

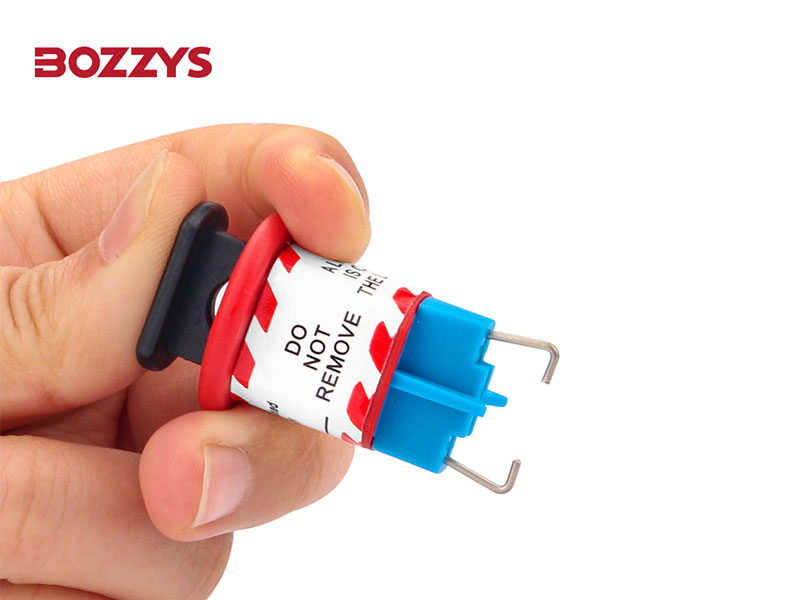

Miniature Circuit Breaker lockouts (Pin-In Standard)

Made from engineering plastic strengthened nylon PA.

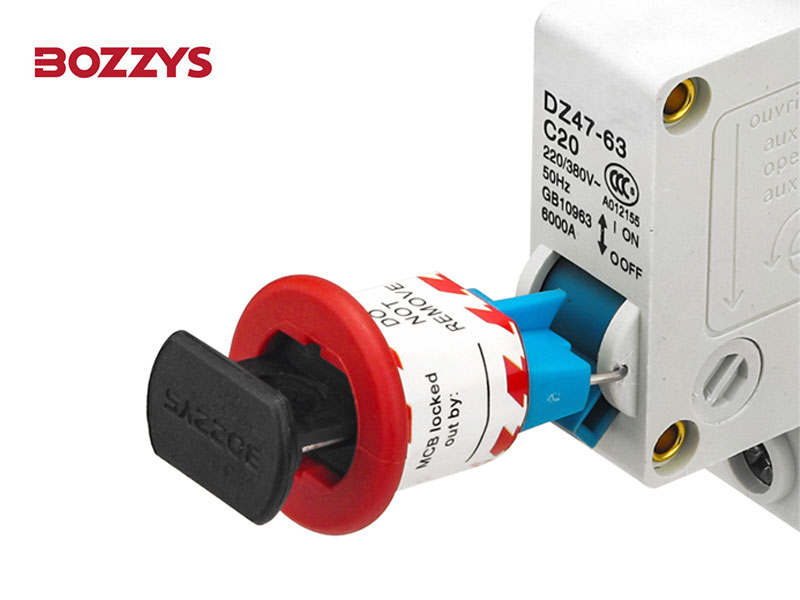

Fit most existing types of European and Asia Circuit Breaker.

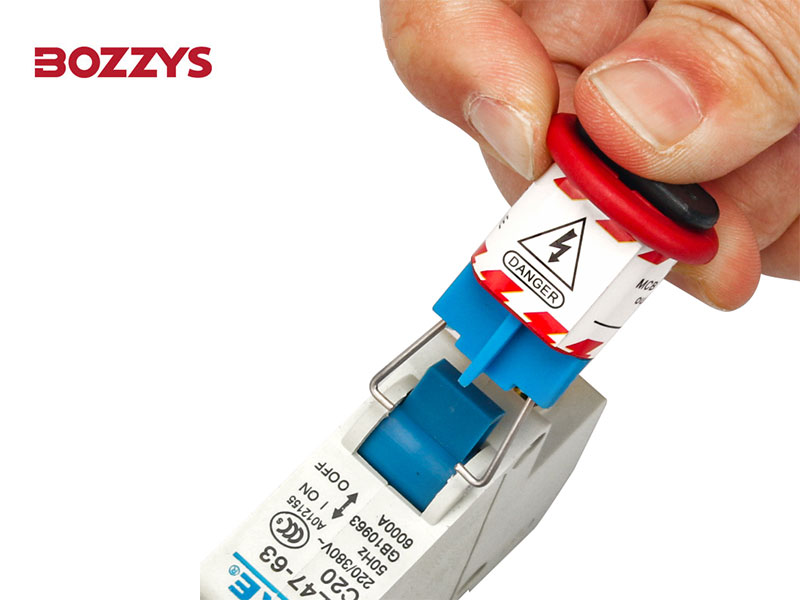

Easily installed with the aid a push button or rotate roller.

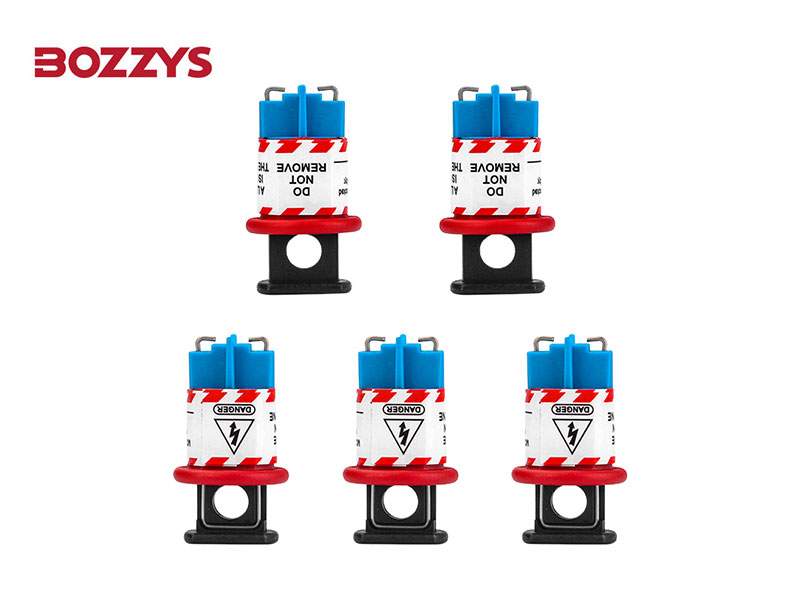

Available for single and multi-pole circuit breaker.

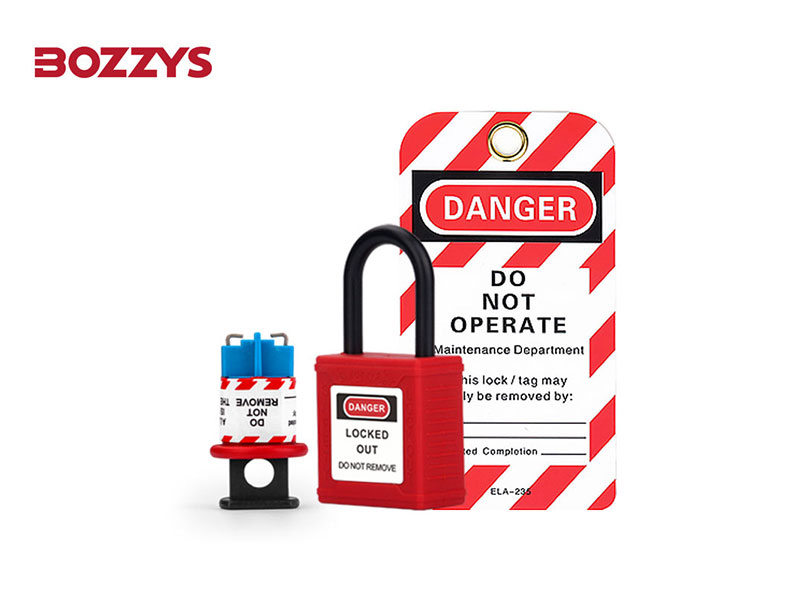

Recommended to use in combination with a padlock for added safety.

Can use padlocks with a shackle Dia.up to 7mm.

Get A Quote PDF Datasheet
DETAIL DISPLAY

Product Selection

Model: BD-D02

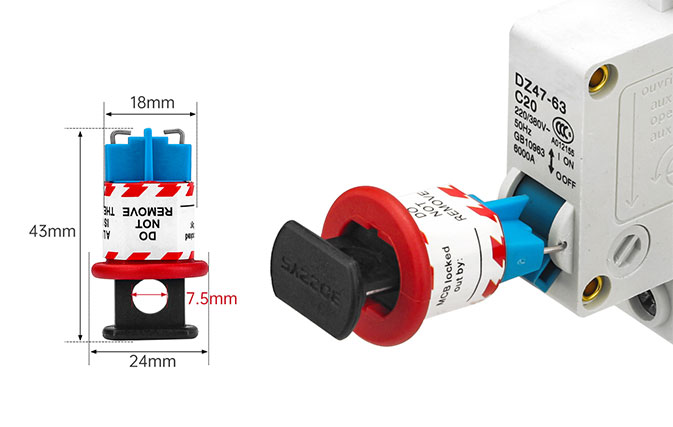

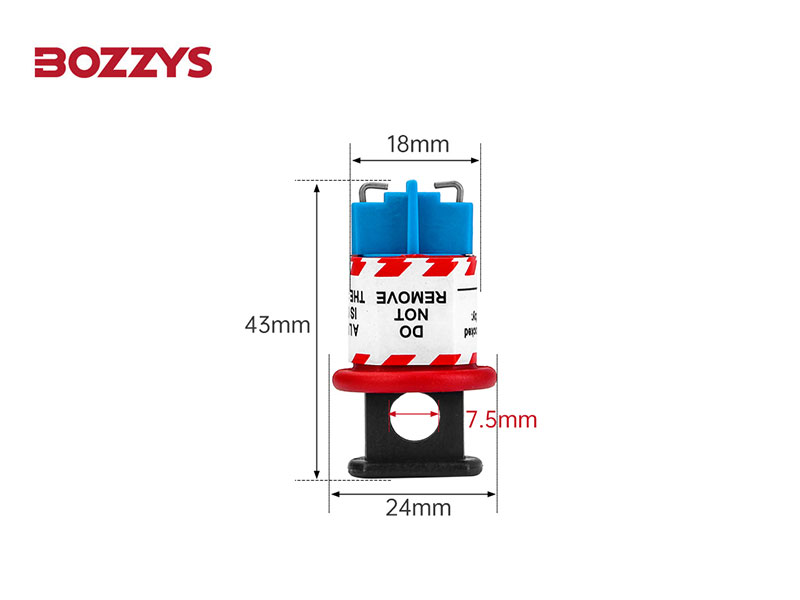

Description: PIS(Pin In Standard), hole spacing ≤12mm

a.Made from engineering plastic strengthened nylon PA.
b.Fit most existing types of European and Asia Circuit Breaker.
c.Easily installed with the aid a push button or rotate roller.
d.Available for single and multi-pole circuit breaker
e.Recommended to use in combination with a padlock for added safety.
f.Can use padlocks with a shackle diameter up to 7mm.

Part Code Description
BD-D01 POS (Pin Out Standard), hole spacing ≤12mm
BD-D02 PIS (Pin In Standard), hole spacing ≤12mm
BD-D03 TBLO (Tie bar Lockout)
BD-D04 POW (Pin Out Wide), hole spacing ≤20mm

BOZZYS circuit breaker safety locks are suitable for circuit breakers of various specifications. We independently develop and produce various safety lockouts: safety padlocks, valve lockouts, industrial electrical lockouts and lockout stations, etc., which can meet the safety locking of various equipment and effectively prevent misoperation.
