miniature circuit breaker lockout

Product Selection

Model: BD-D27

Description: Suitable for mini circuit breaker

Pin type circuit breaker lockout device is used to provide locking to the miniature circuit breaker that is with appropriate small holes, squeeze from the back to open the jaws of the lockout device and then fix or lock it properly in the hole of the MCB. Can be used for single pole circuit breaker, required no tools for installation.

Material – Nylon, ABS, Metallic PIN and Spring

Ideal for use on single pole MCB's

Suitable tor locking Schneider Electric Multi9 C60 miniature circuit breaker.

MCB Pin Lockout is applicable on the circuit breakers for energy isolation, always used when energy source is in switched OFF condition.

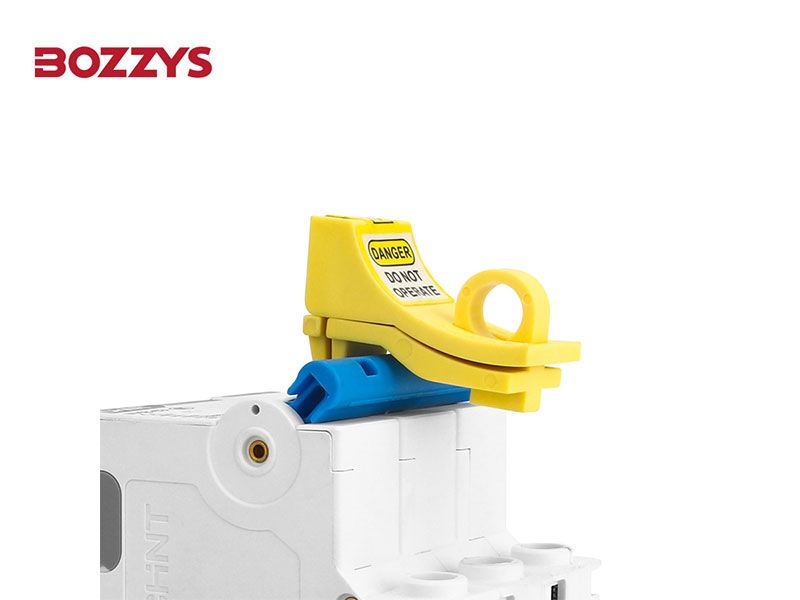

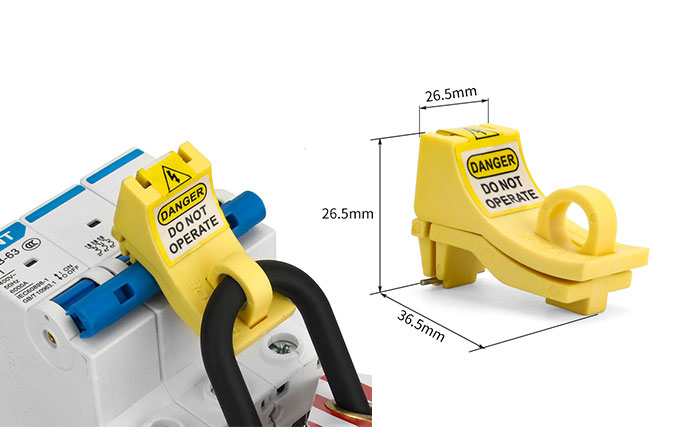

The device with wire clips will move into position so as to adjust behind

the toggle of the circuit breaker. As the device will fit on to the circuit

then can lock using the padlock.

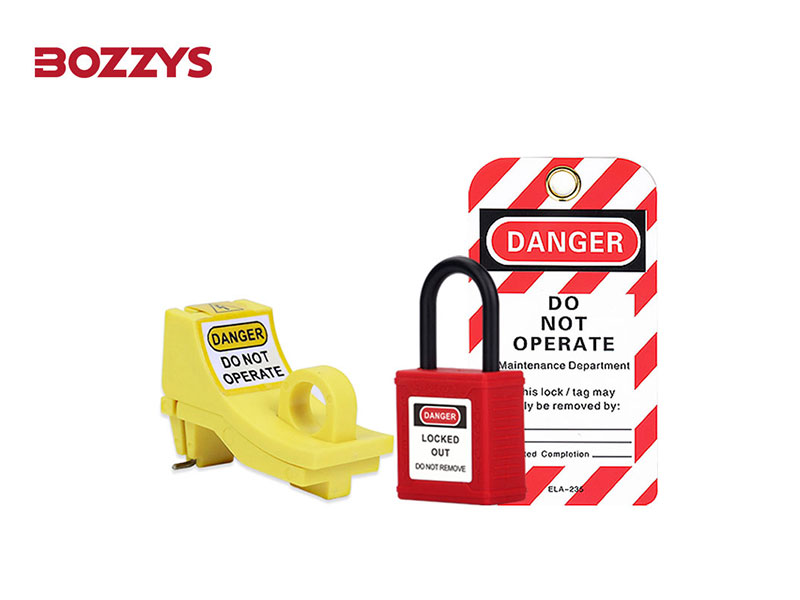

The lockout can take padlock with a hole dia 8mm

Suitable for small sized circuit breaker.

Color – Yellow , Red  or as per the quantity required.

BOZZYS electrical safety locks are suitable for various specifications of circuit breakers, wall switches, emergency stop button switches, electrical plugs, etc. We also independently develop and produce various safety locks: safety padlocks, valve locks, industrial electrical locks and lock stations, etc., which can meet the safety locks of various equipment and effectively prevent misoperation.
