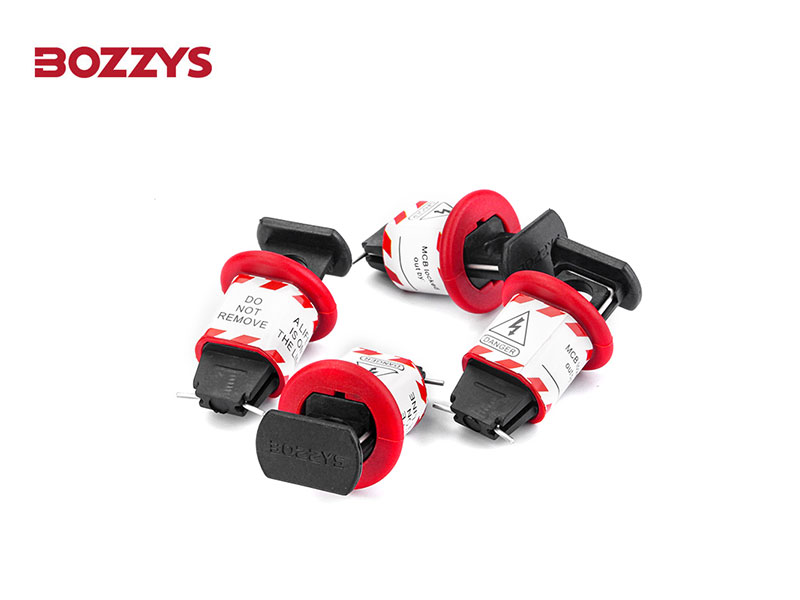

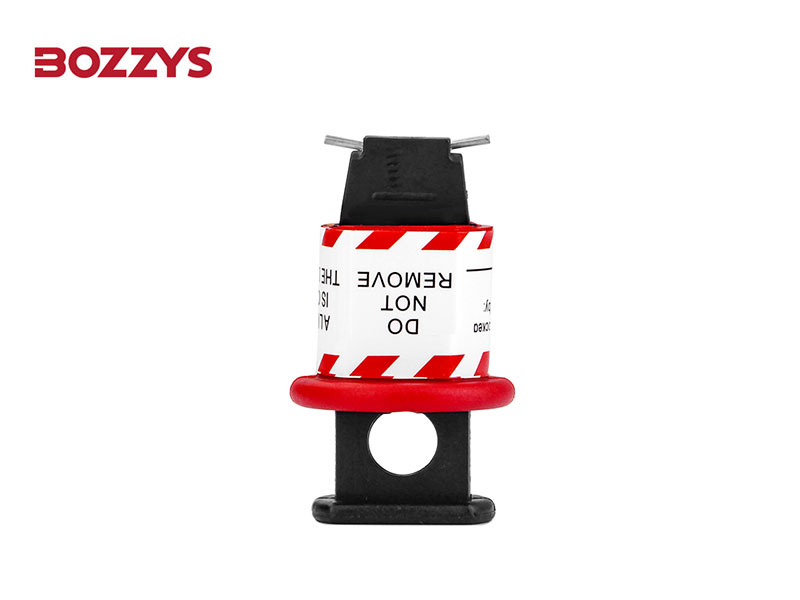

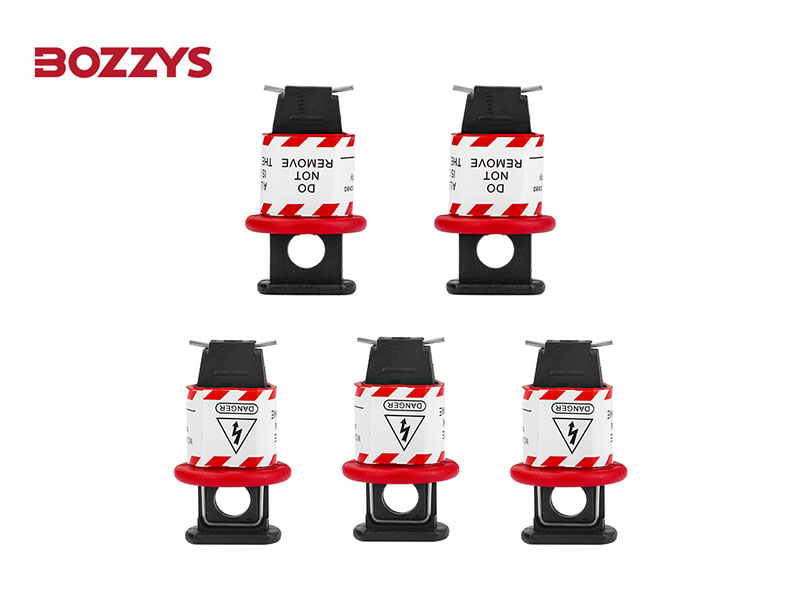

Pin Out Standard Miniature Circuit Breaker Lockout

Made from engineering plastic strengthened nylon PA.

Fit most existing types of European and Asia Circuit Breaker.

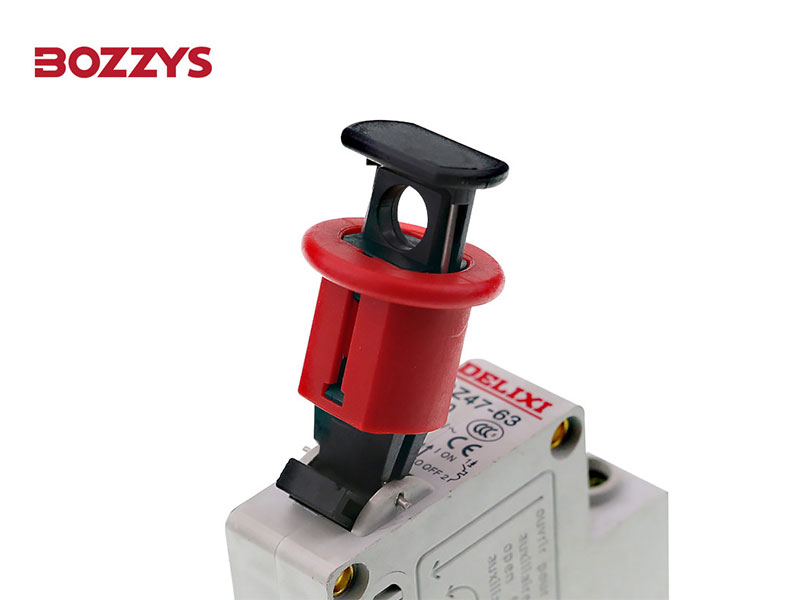

Easily installed with the aid a push button or rotate roller.

Available for single and multi-pole circuit breaker.

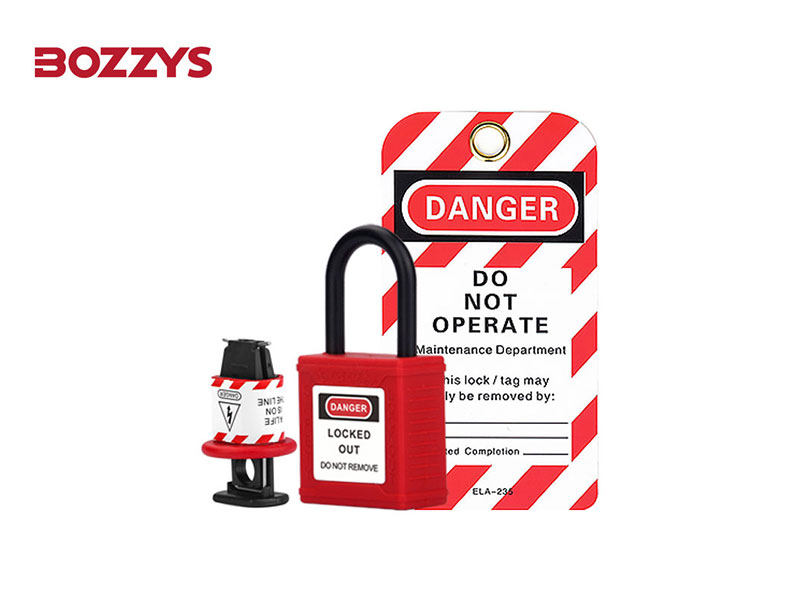

Recommended to use in combination with a padlock for added safety.

Can use padlocks with a shackle Dia.up to 7mm.

DETAIL DISPLAY

Product Selection

Model: BD-D01

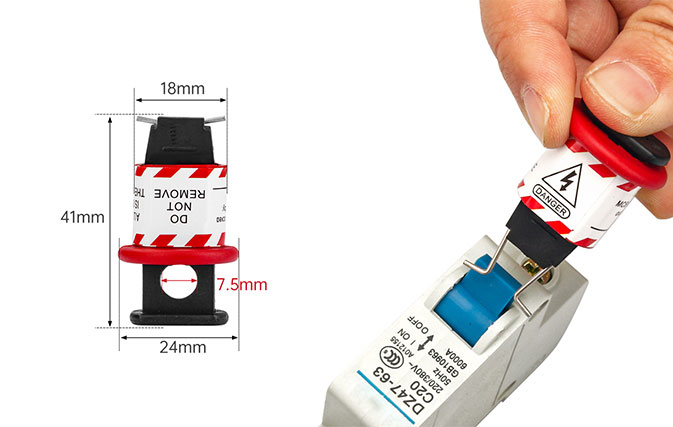

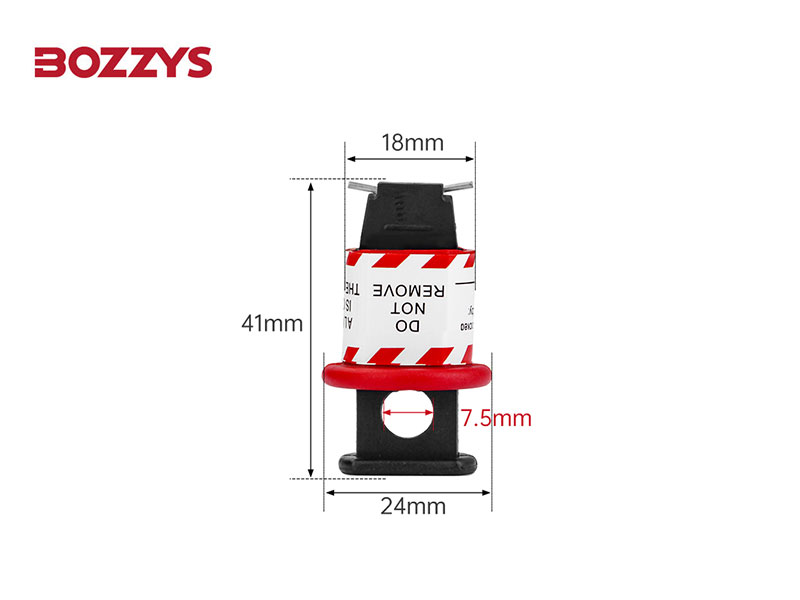

Description: POS (Pin Out Standard), hole spacing ≤12mm

a.Made from engineering plastic strengthened nylon PA.
b.Fit most existing types of European and Asia Circuit Breaker.
c.Easily installed with the aid a push button or rotate roller.
d.Available for single and multi-pole circuit breaker
e.Recommended to use in combination with a padlock for added safety.
f.Can use padlocks with a shackle diameter up to 7mm.

Part Code	Description
BD-D01	POS (Pin Out Standard), hole spacing ≤12mm
BD-D02	PIS (Pin In Standard), hole spacing ≤12mm

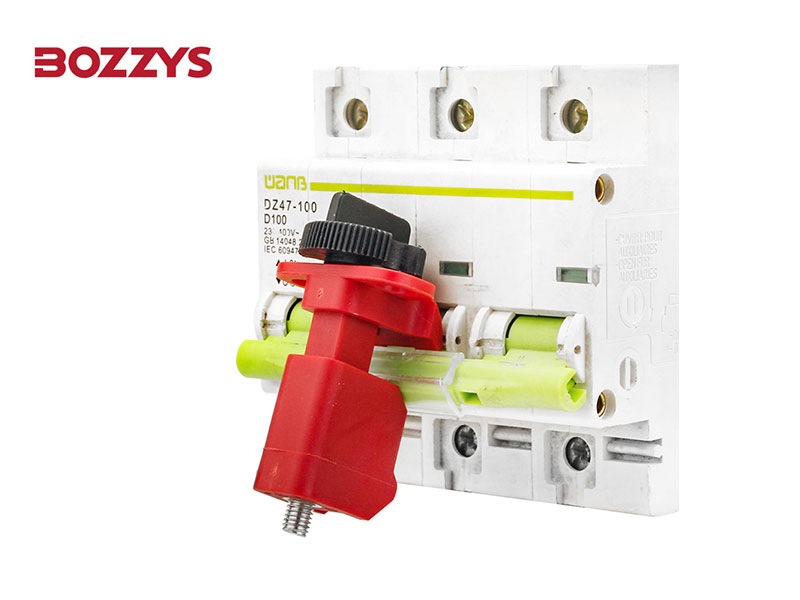

BD-D03	TBLO (Tie bar Lockout)
BD-D04	POW (Pin Out Wide), hole spacing ≤20mm
