Universal Non-conductive Circuit Breaker lockouts

Product Selection

Model: BD-D05-6

Description: Suitable for mini size circuit breakers with handle width ≤9.3mm middle size circuit breakers with handle width ≤12mm

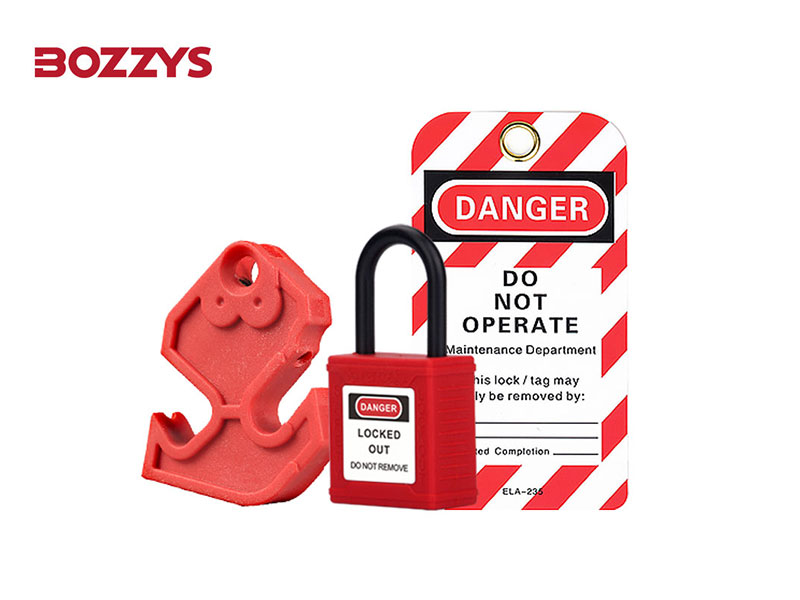

• Universal circuit Breaker lockout is a versatile device fits on wide range of single, double, triple and four pole of electrical circuit breaker can be accommodates up to one lock and with the help of hasp lockout device can be used for group isolation.
• Material – High quality ABS with metallic nut
• KRM Universal Circuit Breaker Lockouts will lockout most type of breaker’s lever. One size fits in all type of circuit breakers having nose Or without nose for better gripping which is UV resistant and suitable for single, double, triple and four pole circuit breaker can be locked with single padlock and lockout hasp.

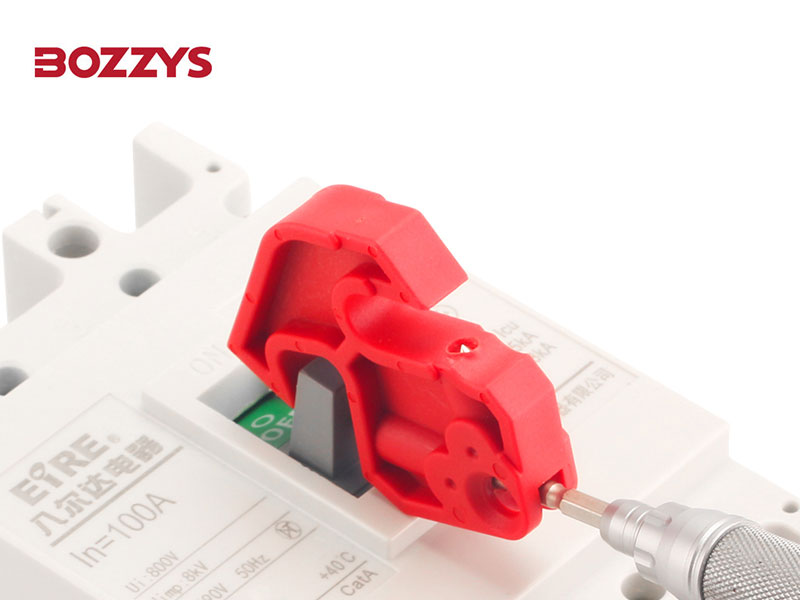

• Specialty of this lockout is that folding screw is there so that no extra tool required for any assistance.

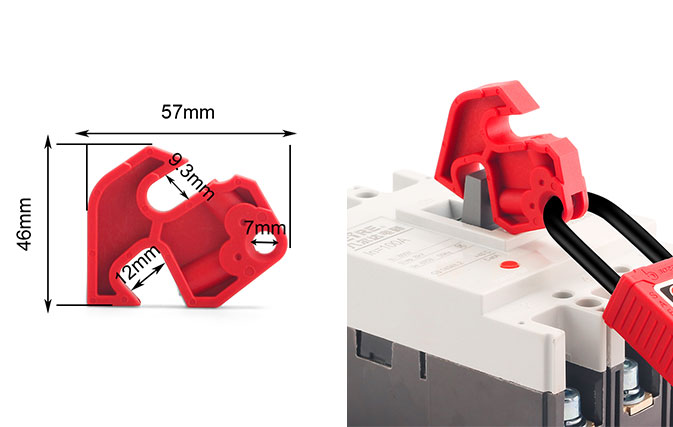

• Size – length 56 mm, width 26 mm, thickness 19 mm, outer Thickness at locking end 11 mm, locking Hole diameter 9 mm, average Centre internal Grip 13.5 m, Average center internal Grip 13.5 mm
• Color – Red, Yellow, Green and Blue Or any color make as per the required quantity.
