Seriessafety Padlock (Ultrasonic Thin Shackletype)

Ultrasonic welding

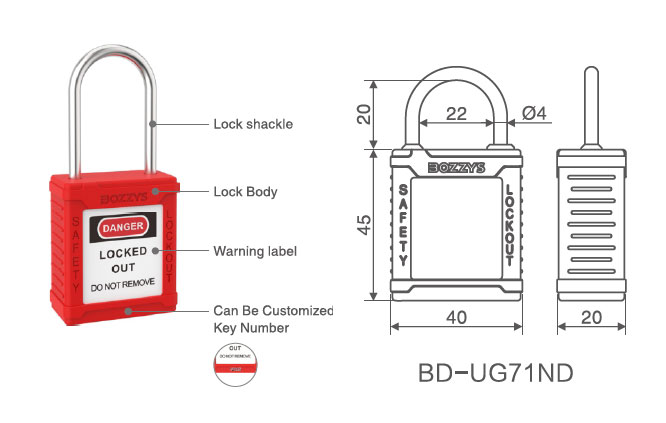

Product Parameter

Part code: BD-UG71ND

Material: Nylon

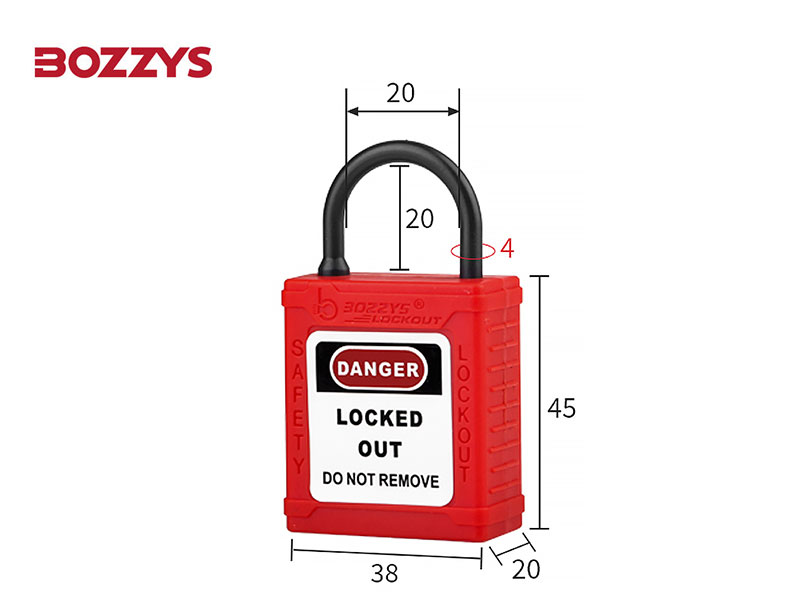

Shackle height: 20mm

Shackle dia: 4mm

Lock budy: EB, B

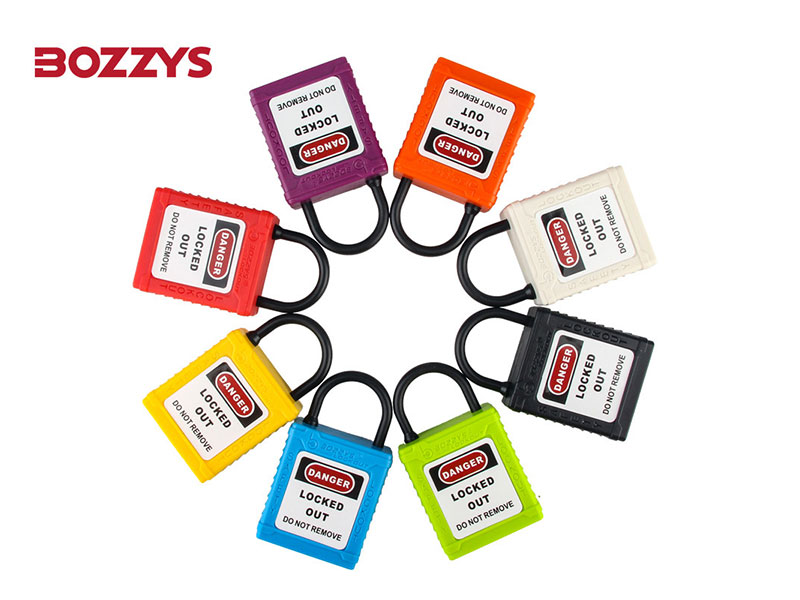

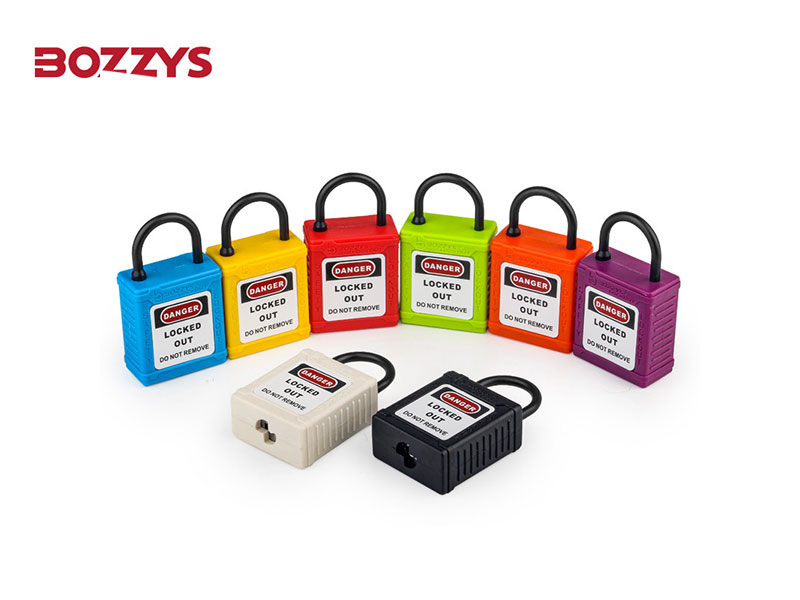

Color: Red, Yellow, Blue, Green, Black, White, Orange, Purple

Lock cylinder Material(optional): Default Zinc lock cylinder/ Non auto pop/ With key retaining feature; Optional Brass lock cylinder/ Non auto pop/ With key retaining feature

• Durable, lightweight with non-conductive PA lock bodies, passed temperature from -57℃ to +177 , shock resistance; The diameter of shackle is only 4mm, can adopt to lockout the narrow aperture.
• Padlock has (Ø4mm, H25mm) nylon shackles are also provided, which are suitable for lockout and tagout of plumbing equipment and electrical equipment.
• Padlock cylinder is made of zinc alloy , which can be made of copper, stainless steel and other materials, and the auto popup lock shackle also can be customized. Zinc alloy cylinder is 12-14 pins , it can realize that more than 100,000pcs padlocks do not open each other.Copper cylinder is 6 pins , it can realize that more than 60,000pcs padlocks do not open each other.
• Key management system: Keyed differ,keyed alike,differ&master key,alike&master key.

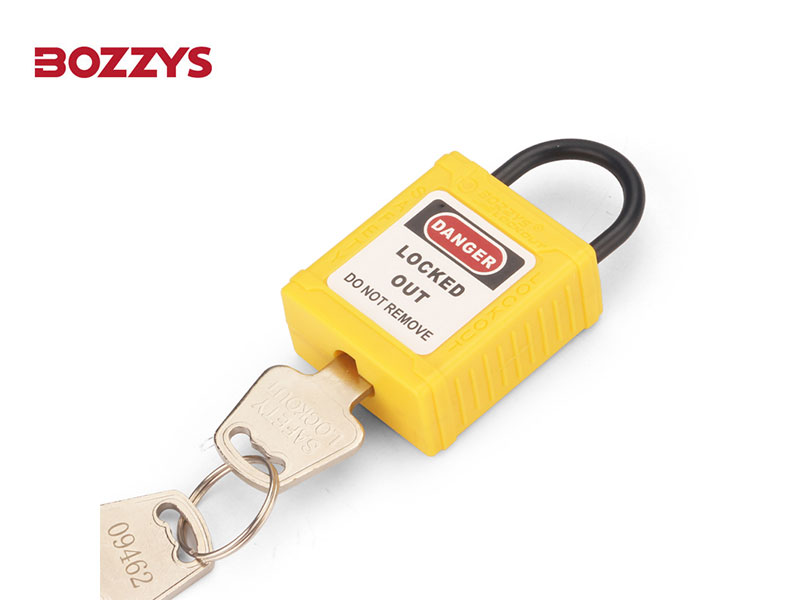

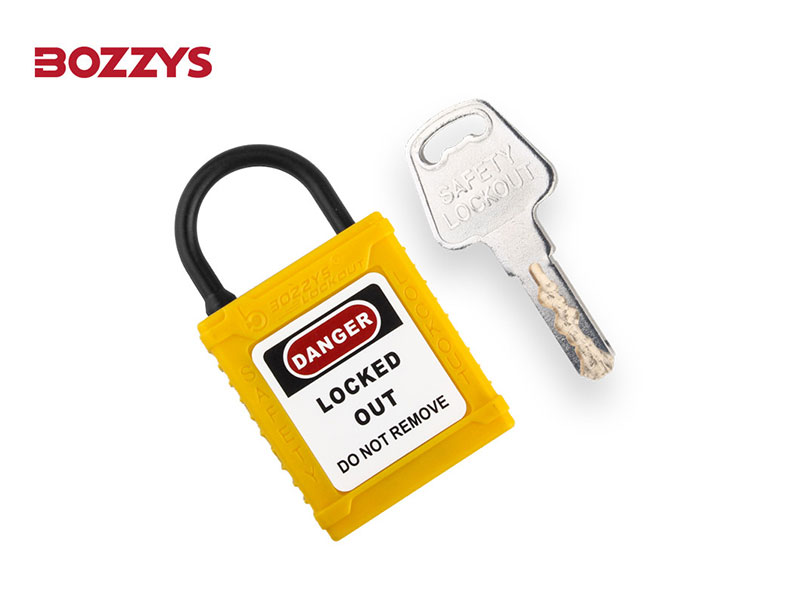

• Safety Padlock has key retaining feature,and key cannot be pulled out in open state, in order to prevent the key from being lost.
• The non-conductive, non-sparking shell,Resistance of chemical, extreme temperatures and Anti-UV of the padlock can protect workers from electric shock.
• The key of the padlock can be customized with different color key covers, fast identification with color matched lock and key.
• Comply with OSHA standard: 1 employee = 1 padlock = 1 key.

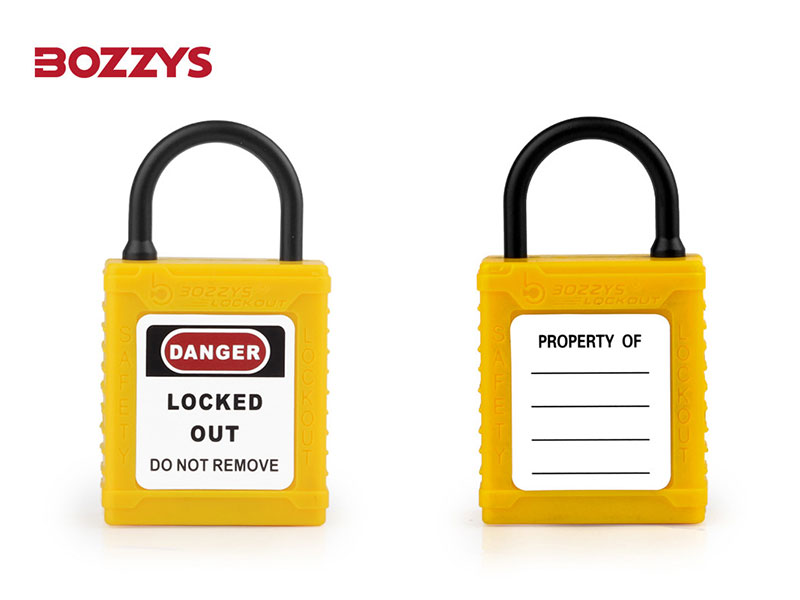

• Padlock has a label with text: "Danger locked out"/"Do not remove, property". Label can be customized noctilucence PVC sign.Contain “Danger”and “Property of” standard labels on front and back.
• The lock body and key can print same code, which is convenient for management.
• Can be engraved with customers’ logo if required.
