Dust-Proof Safety Padlock

Durable, lightweight with non-conductive PA lock body, withstand temperature from -20⌷ to 150⌷, shock resistance; the shackle is chrome plating; the non-conductive shackle is made from Nylon, ensure the strength and deformation fracture not easily.

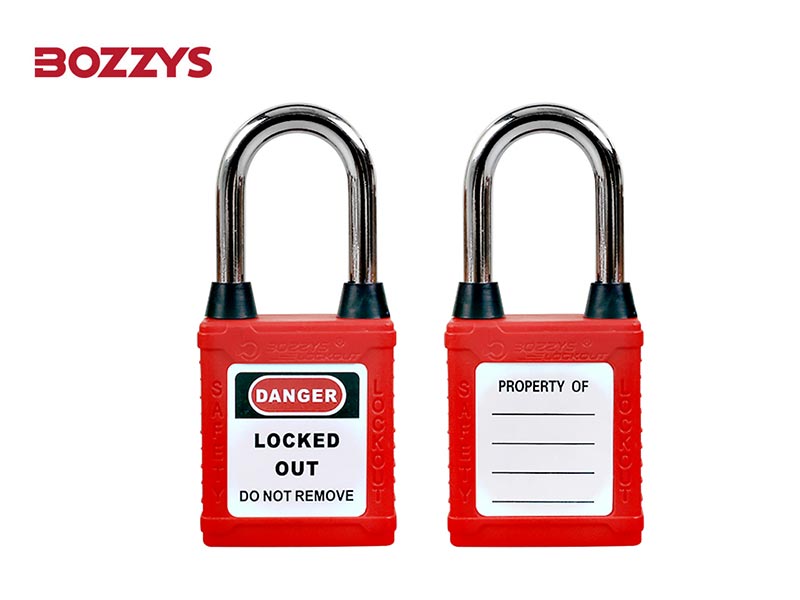

Contain "DANGER" and "PROPERTY OF" standard labels on front and back. Labels language canbe customized.

Resistance of chemical, extreme temperatures and UV rays.. Key retaining to ensure the padlocks are not left unlocked.

oLaser key numbers or print logo on body sides or the front or the back.. 5 types of body and 8 colors for your choice.

Can customized luminous PVC labels.

DETAIL DISPLAY

Product Parameter

Part code: BD-G01DP

Material: Steel / Stainless Steel

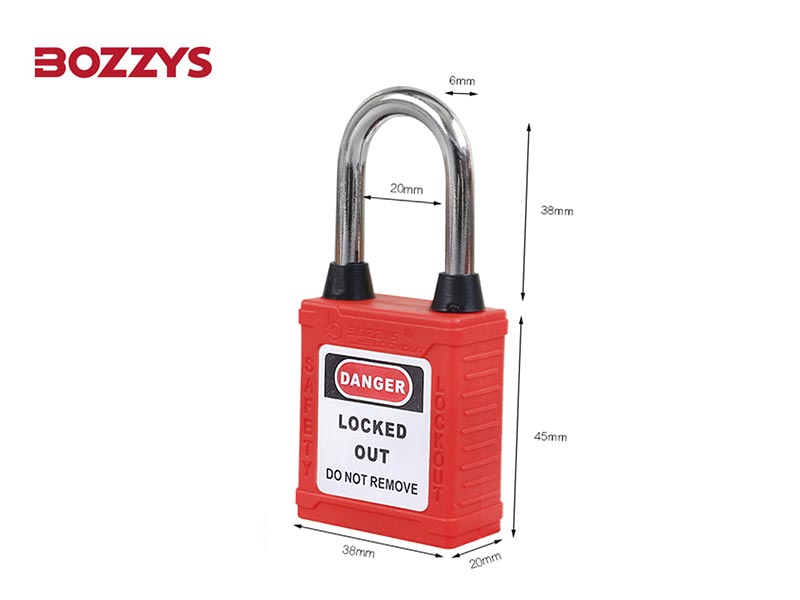

Shackle height: 38mm

Shackle dia: 6.2mm

Lock budy: EB typeby default, other 5 choices A,B,C,D,E

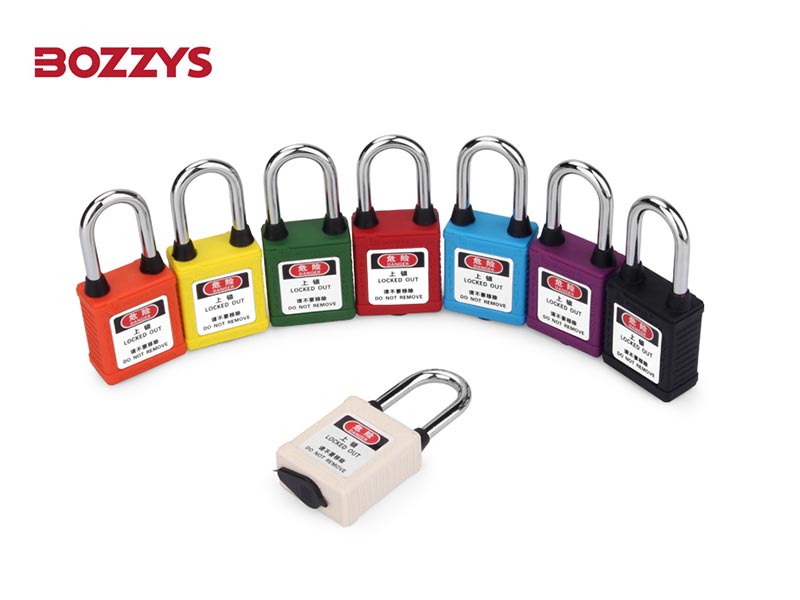

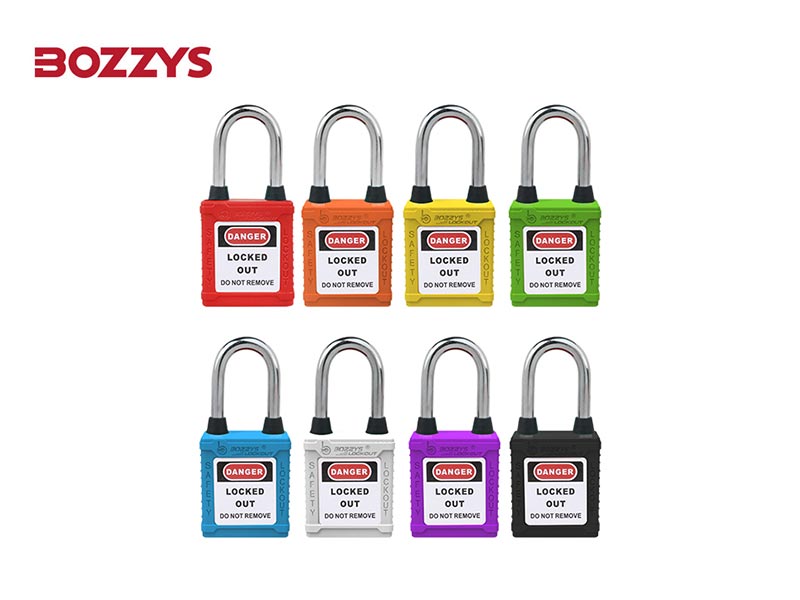

Color: Red, Yellow, Blue, Green, Black, White, Orange, Purple

Lock cylinder Material: Standard Zinc alloy cylinder with 2 keys each lock; Can customade Brass cylinder (standard with 1 key eachlock)

Lock cylinder Autoelasticity: standard nonself elastic and with key retaining function; can customade elastic but without key retaining function

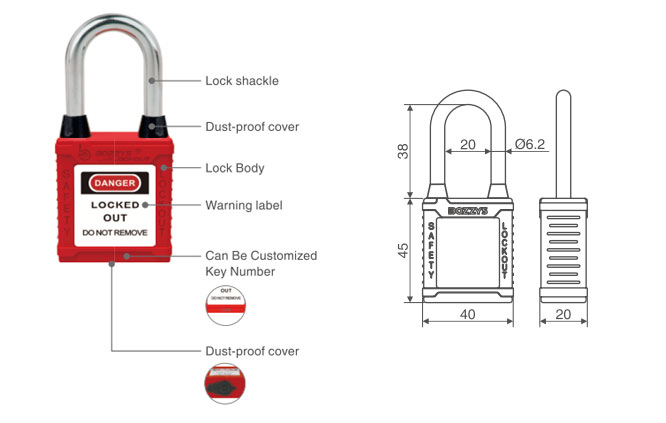

Detail Display

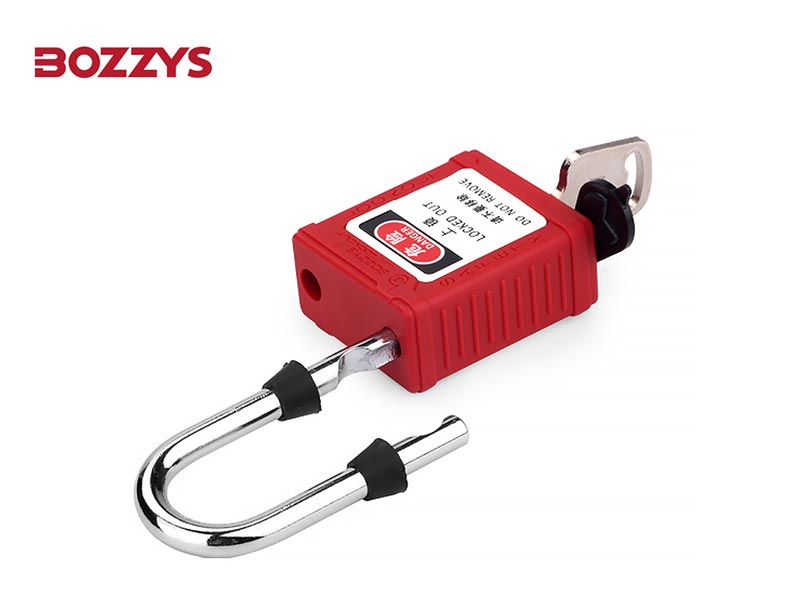

High quality Steel Shackle
High Quality Nylon Lock Body(fill in the back side with the name of the manager and other important information)

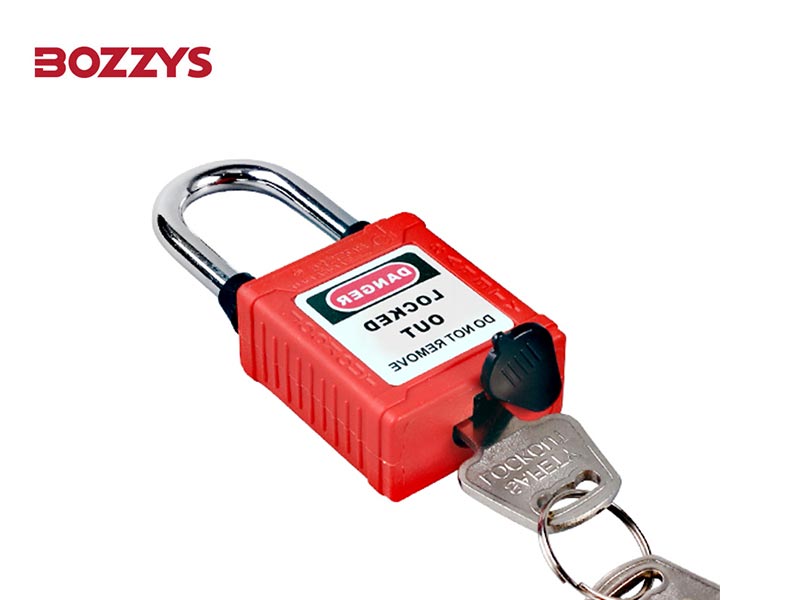

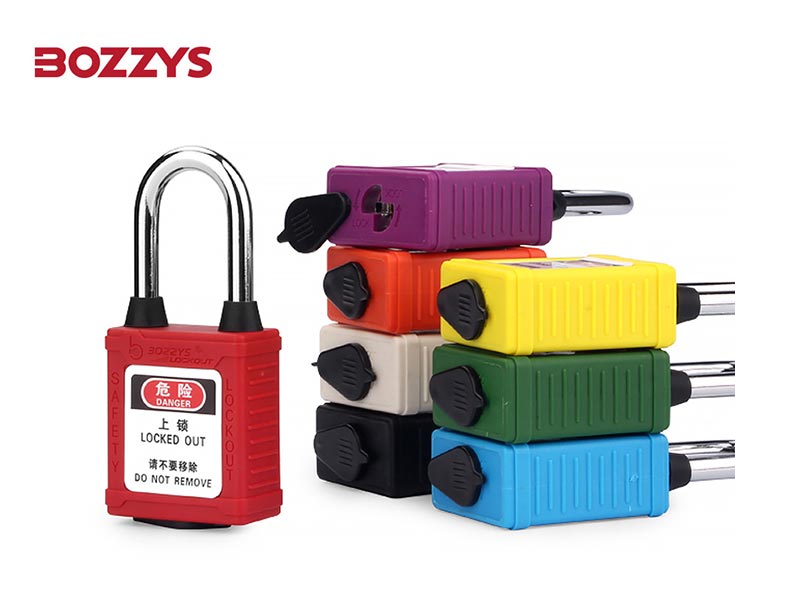

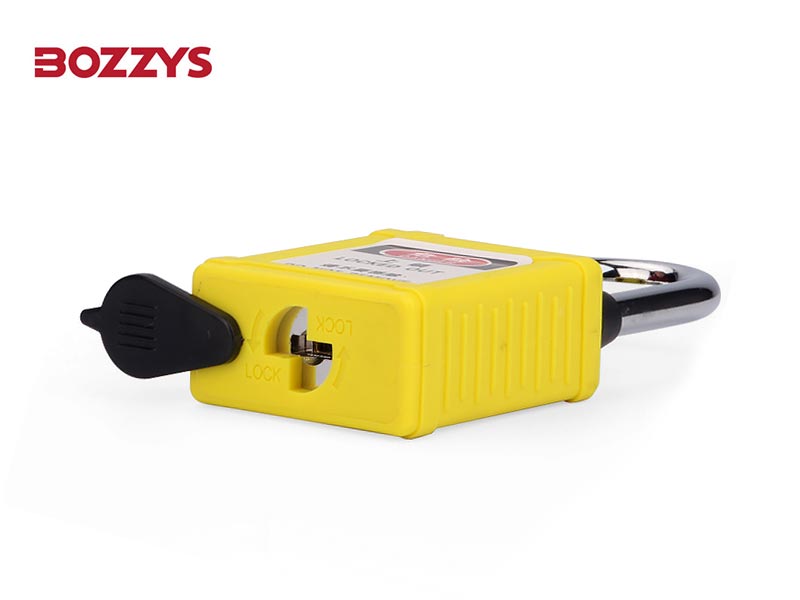

Dust-proof body: with non-conductive dust-proof rubber sleeves on the bottle and the sides
6pins cylinder: ensure the safety and further less the situation of repeating

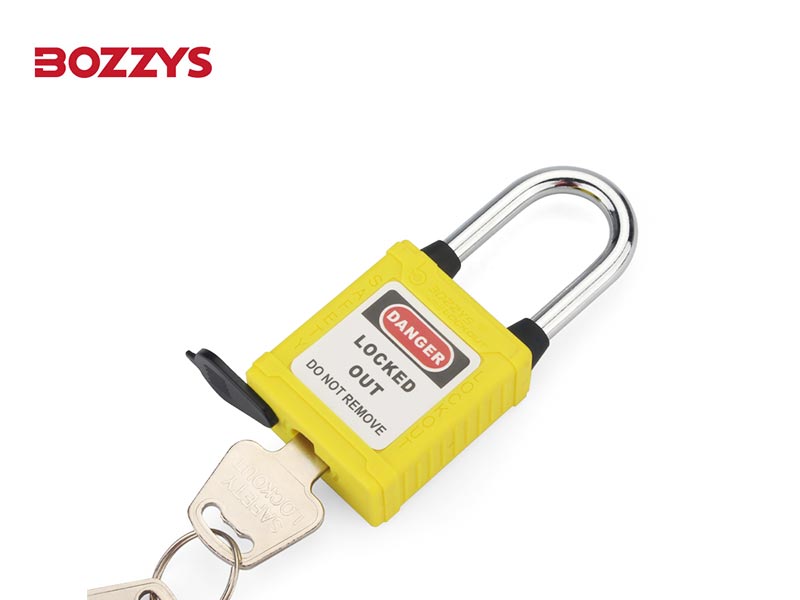

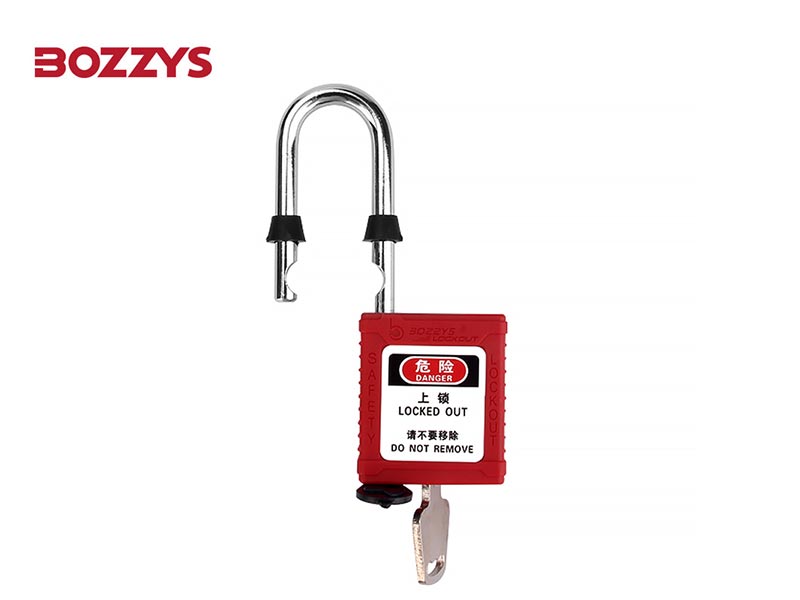

Key Retaining: ensure the key not to be lost

Product Application

Padlock has (Ø6mm, H /38mm) hardened steel /stainless steel shackle, and (Ø6mm, H 25/38/76mm) nylon shackles are also provided, which are suitable for lockout and tagout of plumbing equipment and electrical equipment.

Padlock cylinder is made of zinc alloy , which can be made of copper, stainless steel and other materials, and the auto popup lock shackle also can be customized. Zinc alloy cylinder is 12-14 pins , it can realize that more than 100,000pcs padlocks do not open each other.Copper cylinder is 6 pins , it can realize that more than 60,000pcs padlocks do not open each other.

Key management system: Keyed differ,keyed alike,differ&master key,alike&master key

Safety Padlock has key retaining feature,and key cannot be pulled out in open state, in order to prevent the key from being lost

The non-conductive, non-sparking shell of the padlock can protect workers from electric shock.The key of the padlock can be customized with different color key covers, fast identification with color matched lock and key.

Comply with OSHA standard: 1 employee = 1 padlock = 1 key.

Padlock has a label with text: "Danger locked out"/"Do not remove, property". Label can be customized.

The lock body and key can print same code, which is convenient for management.
