Safety Padlock

The lock body is made of engineering plastic reinforced nylon PA, with an integrated shell design,which is more durable, resistant to temperature difference (-30°C~+120°C) and impact, and the metal shackle is chrome plated.

Contain“DANGER”and "PROPERTY OF" standard labels on front and back (Can customized luminous PVC labels). Labels language can be customized.

Resistance of chemical, extreme temperatures and UV rays.

Can customade self elastic padlock: the lock shackle pops up automatically when unlocking, and the cylinder locks automatically when locking.

Key retaining to ensure the padlocks are not left unlocked.

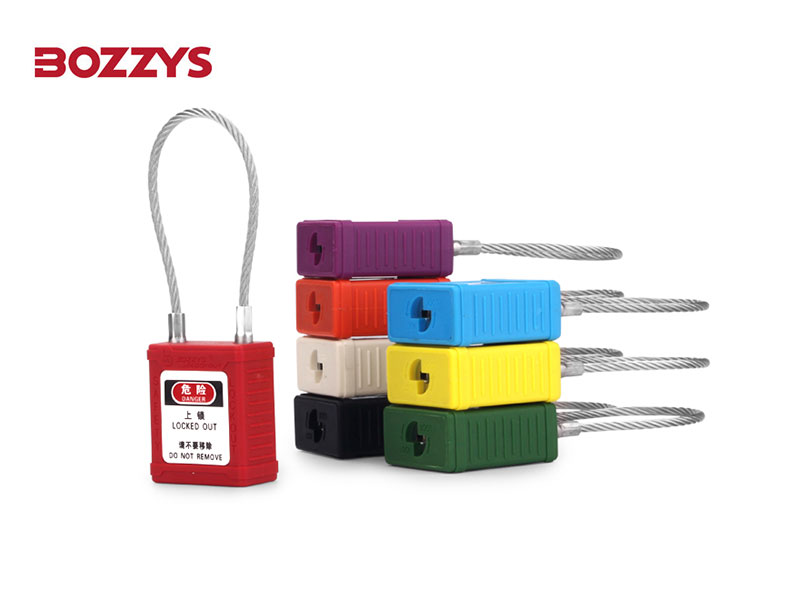

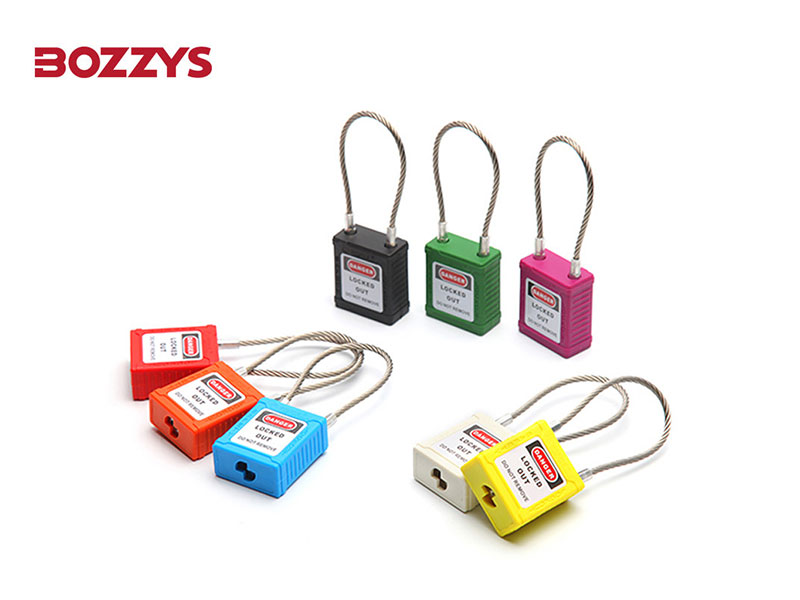

Laser key numbers or print logo on body sides or the front or the back.. 5 types of body and 8 colors for your choice.

DETAIL DISPLAY

Product Parameter

Part code: BD-G47

Material: Steel / Stainless Steel

Shackle height: Cable 150mm

Shackle dia: 3.2mm

Lock budy: EB typeby default, other 5 choices A,B,C,D,E

Color: Red, Yellow, Blue, Green, Black, White, Orange, Purple

Lock cylinder Material: Standard Zinc alloy cylinder with 2 keyseach lock; Can customade Brass cylinder (standard with 1 key eachlock)

Lock cylinder Autoelasticity: standard nonself elastic and with key retaining function; can customade elastic but without key retaining function

Non-conductive Nylon body and PVS encased steel cable.
Weight per padlock is only 40g (200mm version).
Maximum operating temperature 120 ºC.
Small cable diameter ideal for lockout ready equipment with 5mm holes close to each other.
Keyed different (keyed alike on request).
Insulated key chamber protects workers from schocks when key is inserted.
Key retaining (when shackle is open).

Product Application

Padlock with (3.5mm Ø) stainless steel cable shackle, which are suitable for lockout and tagout of plumbing equipment and electrical equipment.
Padlock cylinder is made of zinc alloy , which can be made of copper, stainless steel and other materials, and the auto popup lock shackle also can be customized. Zinc alloy cylinder is 12-14 pins , it can realize that more than 100,000pcs padlocks do not open each other.Copper cylinder is 6 pins , it can realize that more than 60,000pcs padlocks do not open each other.
Key management system: Keyed differ,keyed alike,differ&master key,alike&master key
Safety Padlock has key retaining feature,and key cannot be pulled out in open state, in order to prevent the key from being lost
The non-conductive, non-sparking shell of the padlock can protect workers from electric shock.The key of the padlock can be customized with different color key covers, fast identification with color matched lock and key.
Comply with OSHA standard: 1 employee = 1 padlock = 1 key.
Padlock has a label with text: "Danger locked out"/"Do not remove, property". Label can be customized.
The lock body and key can print same code, which is convenient for management.
Nylon safety padlock red with a (6.50mm) Insulated shackle and key retaining function.

Model Number
