Adjustable Ball Valve Lockout F11T~F13T
Adjustable Ball Valve Lockout F11T~F13T
Adjustable Ball Valve Lockout F11T~F13T
Adjustable Ball Valve Lockout F11T~F13T
Adjustable Ball Valve Lockout F11T~F13T
Adjustable Ball Valve Lockout F11T~F13T

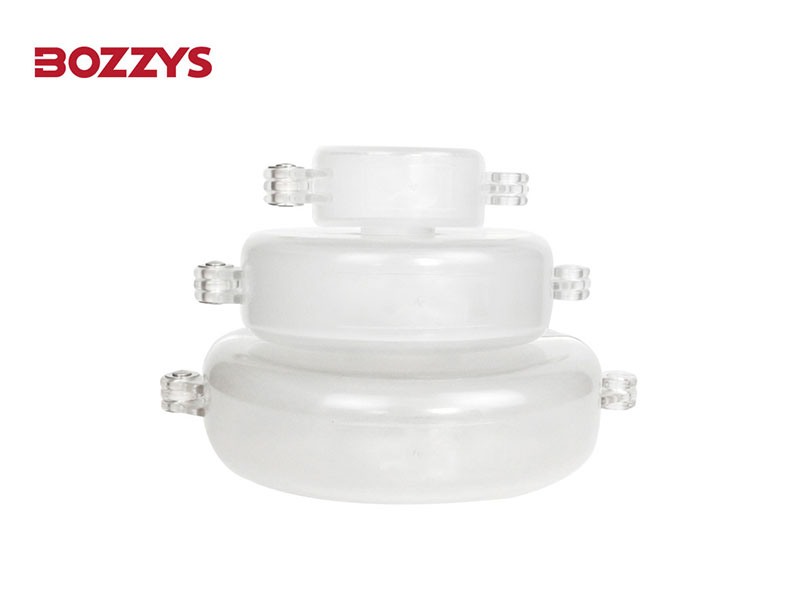

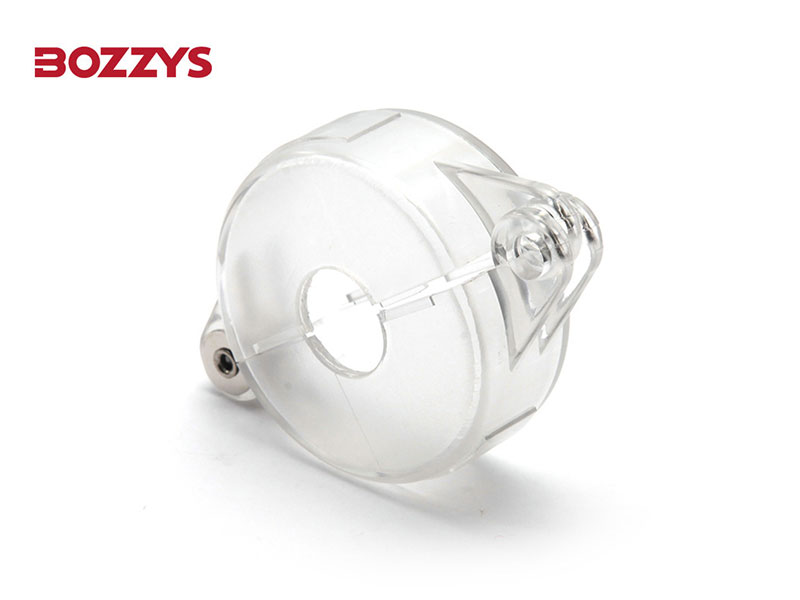

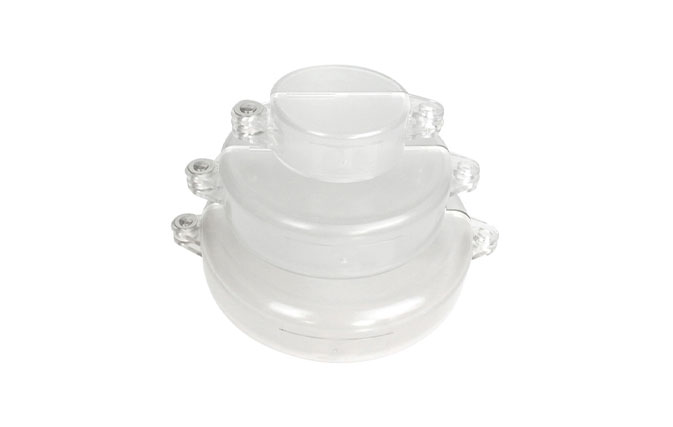

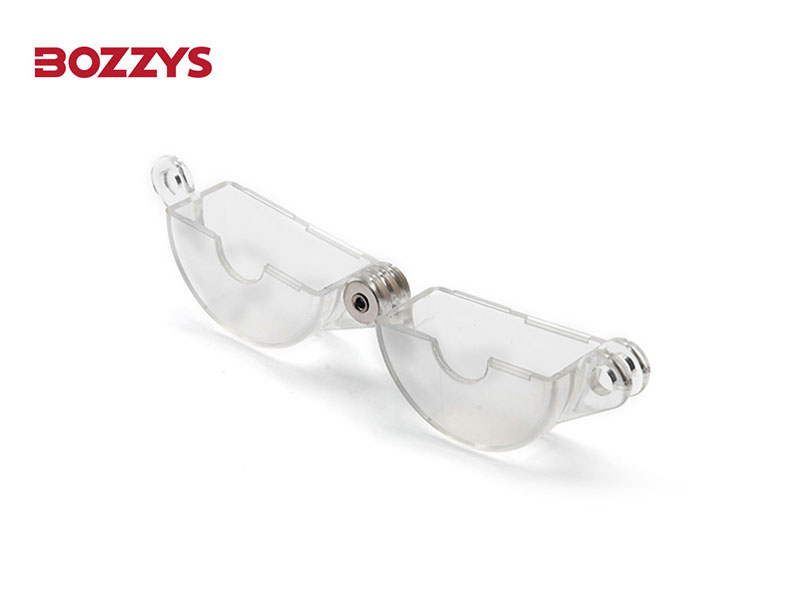

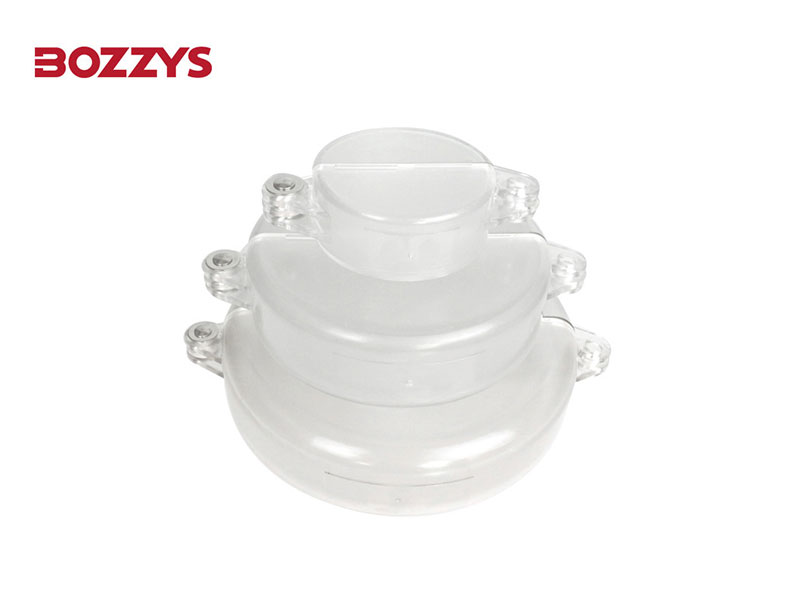

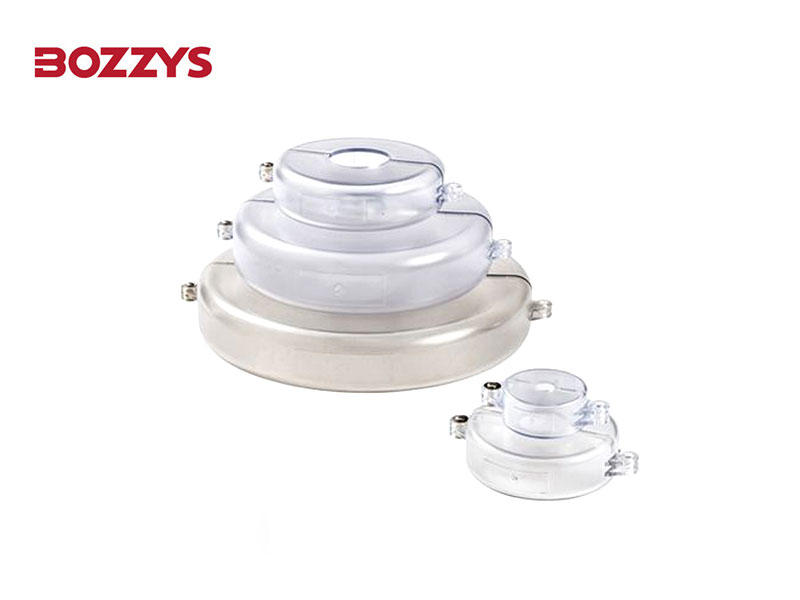

BD-F11T SERIES

Adjustable Ball Valve Lockout

BD-F11~F15 are made of ABS,BD-F11T~F15T are made of PC;

Dedicated to locking gate valves with a stem Dia. (handwheel Dia.) of 25mm-330mm.

lt can be locked with a safety padlock with a Dia.of the lock beam ≤ 7mm.

Color red or clear, other colors to order. Chinese and English warning labels are available.

Get A Quote PDF Datasheet
Detail Display Get A Quote Detail Products Detail News
DETAIL DISPLAY
Model Valve rod Dia. (Wheel dia) Hole dia Inner Height
BD-F11T 25-64mm(1"-2.5") 19mm 28mm
BD-F12T 64-127mm(2.5"-5") 44mm 35mm
BD-F13T 127-165mm(5"-6.5") 62mm 40mm
BD-F14T 165-254mm(6.5"-10") 88mm 60mm
BD-F15T 254-330mm(10"-13") 105mm 60mm

Adjustable Ball Valve Lockout F11T~F13T 1Adjustable Ball Valve Lockout F11T~F13T 2Adjustable Ball Valve Lockout F11T~F13T 3Adjustable Ball Valve Lockout F11T~F13T 4Adjustable Ball Valve Lockout F11T~F13T 5Adjustable Ball Valve Lockout F11T~F13T 6Adjustable Ball Valve Lockout F11T~F13T 7Adjustable Ball Valve Lockout F11T~F13T 8Adjustable Ball Valve Lockout F11T~F13T 9
