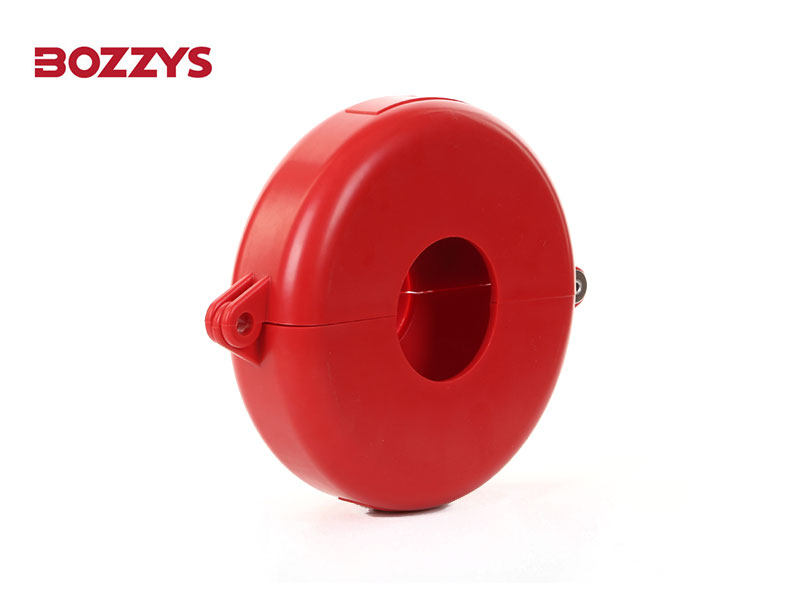

BD-F15A SERIES

Gate Valve Lockout for hand wheel diameter 245mm-330mm(10”-13”)

BD-F11~F15 are made of ABS,BD-F11T~F15T are made of PC;

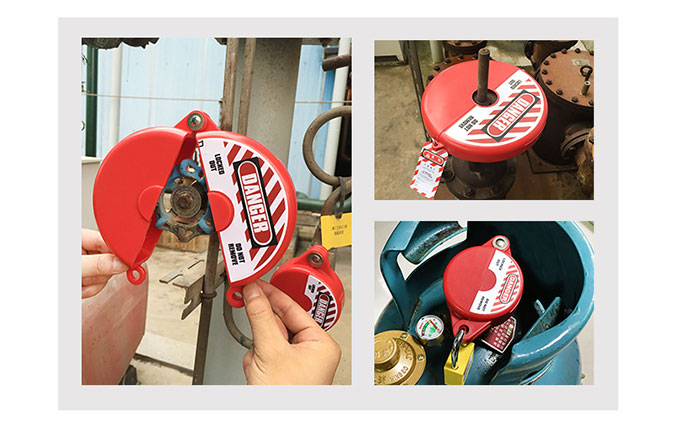

Dedicated to locking gate valves with a stem Dia. (handwheel Dia.) of 25mm-330mm.

lt can be locked with a safety padlock with a Dia.of the lock beam ≤ 7mm.

Color red or clear, other colors to order. Chinese and English warning labels are available.

Get A Quote PDF Datasheet
DETAIL DISPLAY

Product Selection

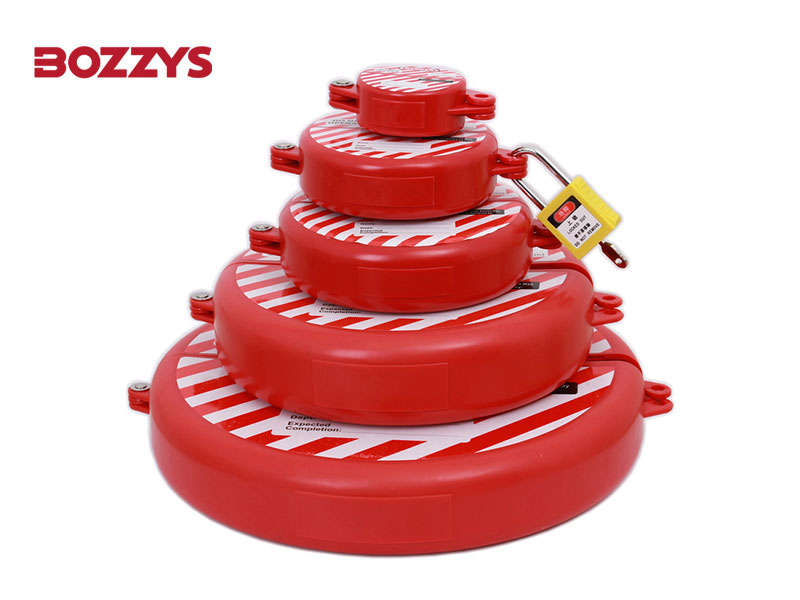

GATE VALVE LOCKOUT

a.Made from Engineering plastic nylon ABS.
b.Lock the hand wheel diameter 25mm-330mm(1”-13”) valve (As sheet description).
c.Locked by one Padlock, lock shackle diameter ≤7mm.
d.Color: red, other colors need to be customized. Tagout is available.

Model Valve rod Dia. (Wheel dia) Hole dia Inner Height
BD-F11 25-64mm (1"-2.5") 19mm 28mm
BD-F12 64-127mm (2.5"-5") 44mm 35mm
BD-F13 127-165mm (5"-6.5") 62mm 40mm
BD-F14 165-254mm (6.5"-10") 88mm 60mm
BD-F15 254-330mm (10"-13") 105mm 60mm
