BD-F11A SERIES

Foldable Gate Valve Lockout kit

Made from imported DuPont engineering plastics.

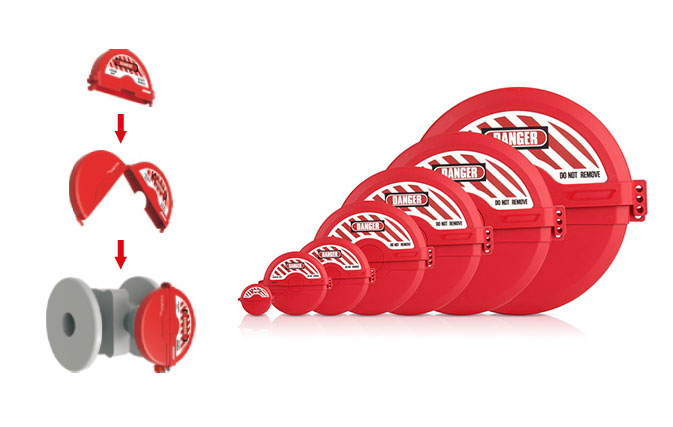

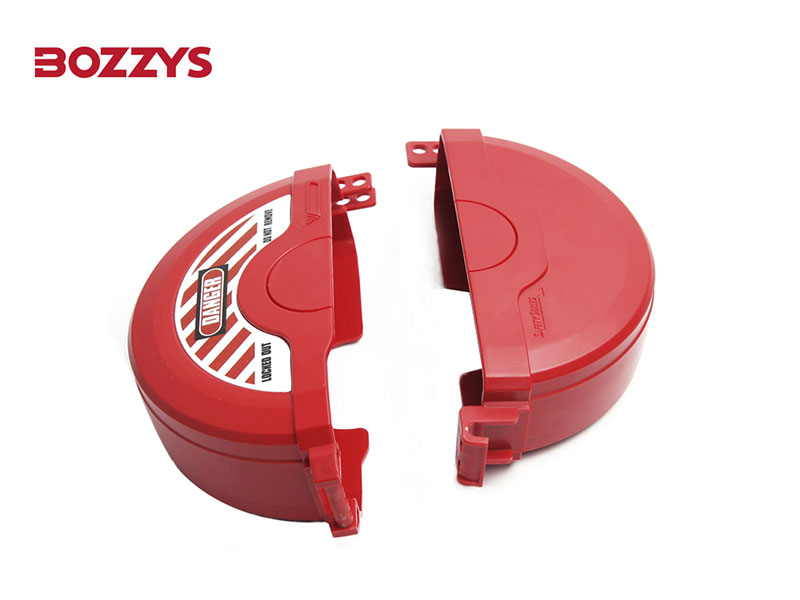

The different size semicircle design, two parts can be combined into one when storing andcarrying, reduce a half volume.

Locked by 2-4 pcs padlocks, locked shackle Dia. ≤7mm.

Color: red, other colors need to be customized.Label can be customized.

Get A Quote PDF Datasheet
DETAIL DISPLAY

Made from imported DuPont engineering plastics.

The different size semicircle design, two parts can be combined into one when storing and carrying, reduce a half volume. Lock the hand wheel diameter 25mm-450mm(1”-18”) valve(as sheet description).

Locked by 4pcs padlocks, locked shackle diameter ≤7mm.

Color: red, other colors need to be customized. Tagout is available

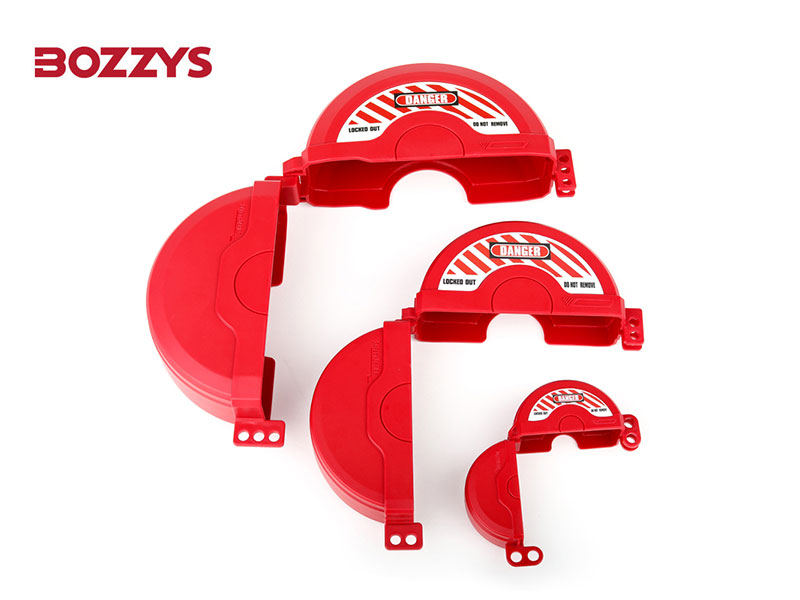

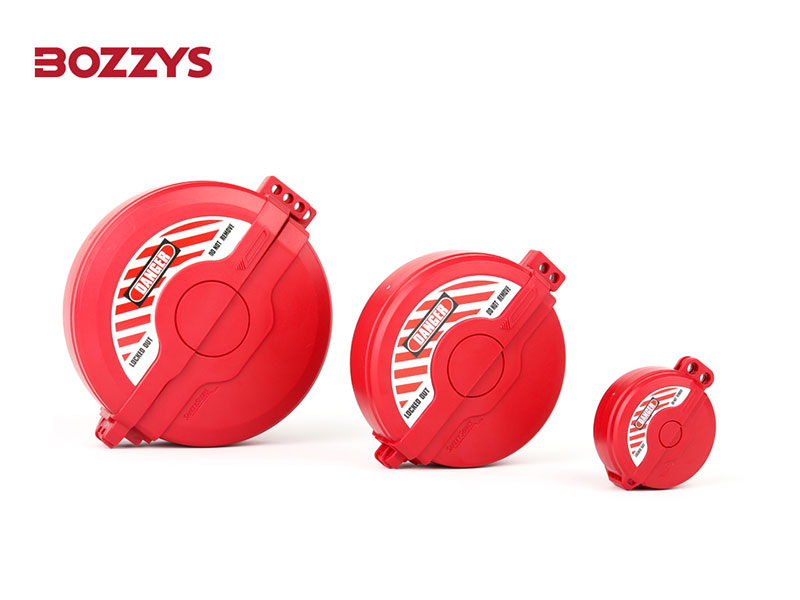

Set of seven gate valve lockouts Suitable for 25mm to 600mm gate valves

Completely surrounds the valve handle to prevent accidental operation.

Center knockout can be removed for rising stem gate valves

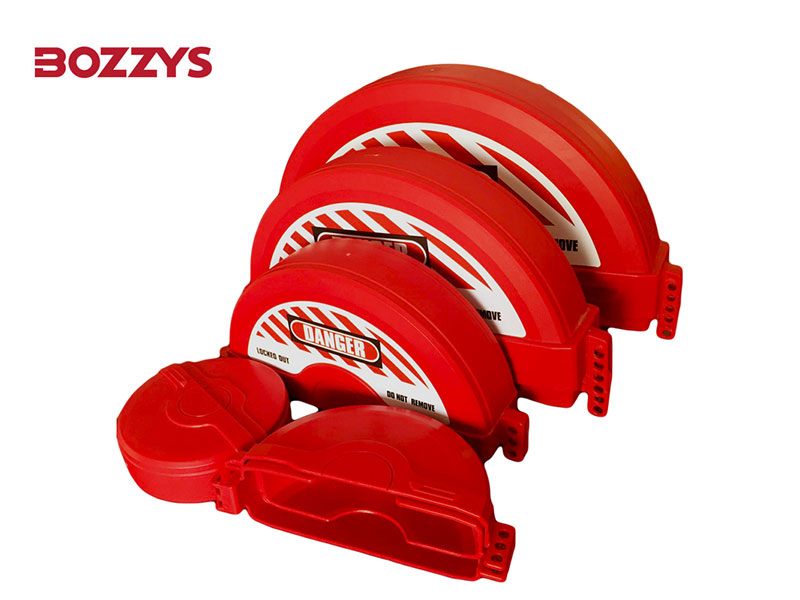

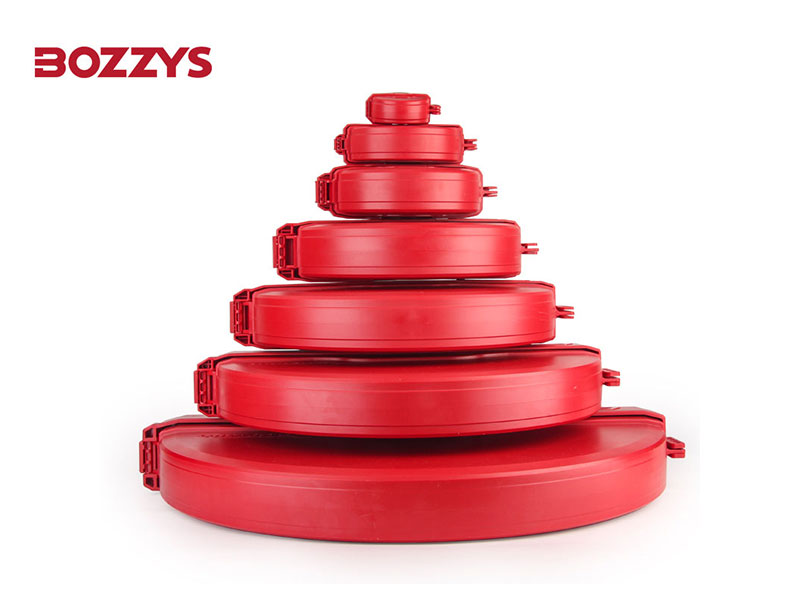

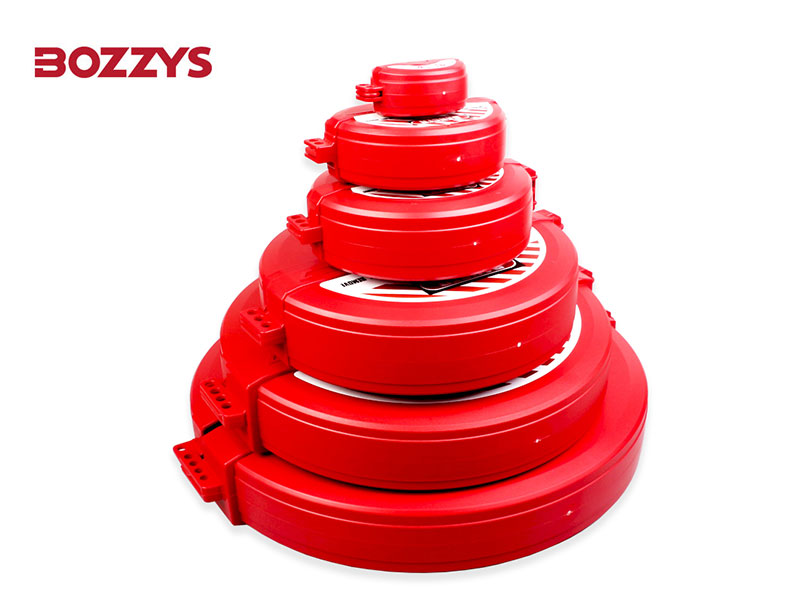

Each size rotates into itself and nests into the next larger size to save space in safety tool boxes

 Porous design-Multiple workers can apply their personal safety padlocks

With eye-catching safety warning labels, it supports language types, layout adjustments, and LOGO customization.

BOZZYS valve lockout locks are suitable for the locking of ball valves, gate valves, butterfly valves, flanged ball valves, flanged blind plates, plug valves and other pipeline valve equipment. We are a lockout tagout locks manufacturer from China.We produce safety padlocks, valve lockouts, industrial electrical lockouts and Lockout station, etc.,  we can meet the lockout tagout locks of various equipment, and effectively prevent misoperation.



Model Valve rod Dia. (Wheel dia) Hole dia Inner Height
BD-F11A 25-64mm(1"-2.5") 19mm 30mm
BD-F12A 64-127mm(2.5"-5") 44mm 35mm
BD-F13A 127-165mm(5"-6.5") 62mm 55mm
BD-F14A 165-254mm(6.5"-10") 90mm 60mm
BD-F15A 254-330mm(10"-13") 105mm 65mm
BD-F15Plus 330-450mm(13"-18") 125mm 60mm
BD-F15B 450-600mm(18"-24") 125mm 65mm
