How Does a Gate Valve Lockout Work?

In industrial settings, safety is of paramount importance. One crucial safety measure is the use of gate valve lockouts. These devices play a significant role in preventing accidental valve operation, which could lead to hazardous situations. This article will delve into the inner workings of gate valve lockouts.

What is a Gate Valve Lockout?

A gate valve lockout is a safety device designed to immobilize a gate valve in a specific position, either open or closed. It physically prevents the valve from being turned or adjusted, ensuring that the flow of fluids or gases through the pipeline remains controlled.

Working Principle

The basic principle behind a gate valve lockout is simple yet effective. It uses a locking mechanism to engage with the valve's operating mechanism. Most gate valves have a handwheel or a lever that is used to open and close the valve. The lockout device is designed to fit over this operating component.

Once the valve is set to the desired position (open or closed), the lockout is installed. It typically has a hasp or a loop where a padlock can be inserted. By locking the padlock, the lockout device prevents any movement of the valve's operating mechanism. This means that even if someone tries to turn the handwheel or move the lever, they will be unable to do so due to the lockout in place.

Components of a Gate Valve Lockout

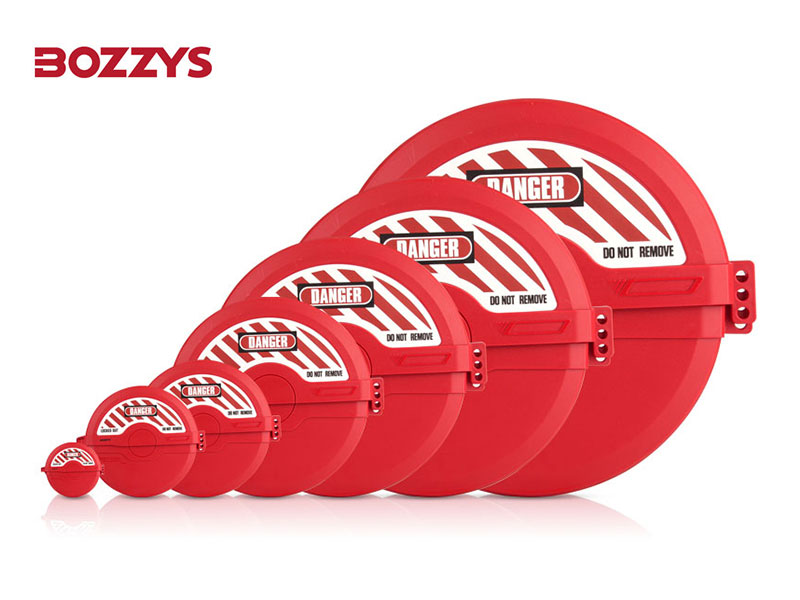

1. Locking Body: This is the main part of the lockout device. It is designed to fit snugly around the valve's operating component, such as the handwheel or lever. The locking body is usually made of a durable material like steel or high - strength plastic to withstand the rigors of industrial environments.

2. Hasp or Loop: As mentioned earlier, this is the part where the padlock is inserted. The hasp or loop is securely attached to the locking body and is designed to be strong enough to hold the padlock in place, preventing any unauthorized access to the valve's operating mechanism.

3. Mounting Hardware: Some gate valve lockouts may come with additional mounting hardware, such as bolts or clamps. These are used to further secure the lockout device to the valve or the surrounding structure, ensuring that it does not accidentally dislodge.


Installation and Operation

1. Positioning the Valve: First, the gate valve needs to be set to the correct position, whether it is open or closed, depending on the requirements of the system. This is a critical step as the lockout will maintain the valve in this position.

2. Installing the Lockout: Once the valve is in the desired position, the lockout device is placed over the valve's operating mechanism. The locking body should fit tightly around the handwheel or lever. If there is any mounting hardware, it should be installed at this stage to secure the lockout in place.

3. Locking the Device: After the lockout is properly installed, a padlock is inserted through the hasp or loop. Only authorized personnel should have the key to this padlock. This ensures that only those with the proper authorization can access the valve's operating mechanism and change its position.


Importance in Safety

Gate valve lockouts are essential for safety in industrial plants. They prevent accidental valve operation during maintenance, repair, or other activities. For example, if a worker is performing maintenance on a section of pipeline downstream of a gate valve, a lockout on the valve ensures that no one can accidentally open the valve and release hazardous substances, such as high - pressure steam or toxic chemicals, onto the worker. This significantly reduces the risk of accidents and injuries in the workplace.


In conclusion, gate valve lockouts are a simple but highly effective safety device. By understanding how they work, industrial workers can better implement safety procedures and protect themselves and their colleagues from potential hazards associated with uncontrolled valve operation.
